Discriptions:

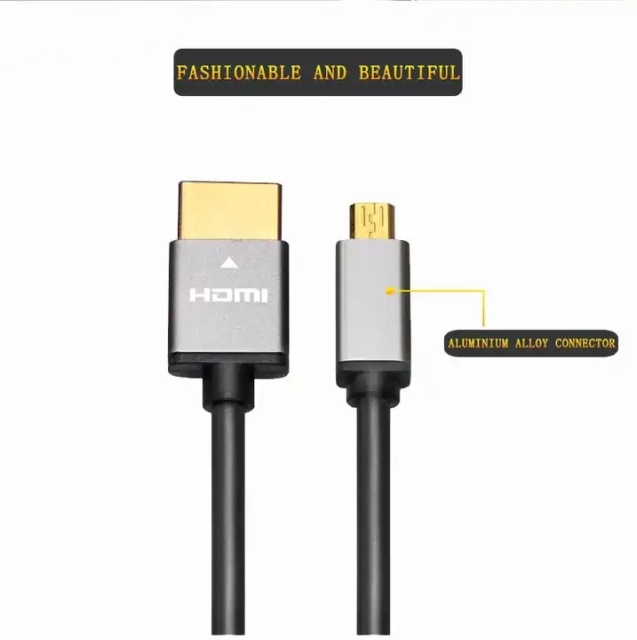

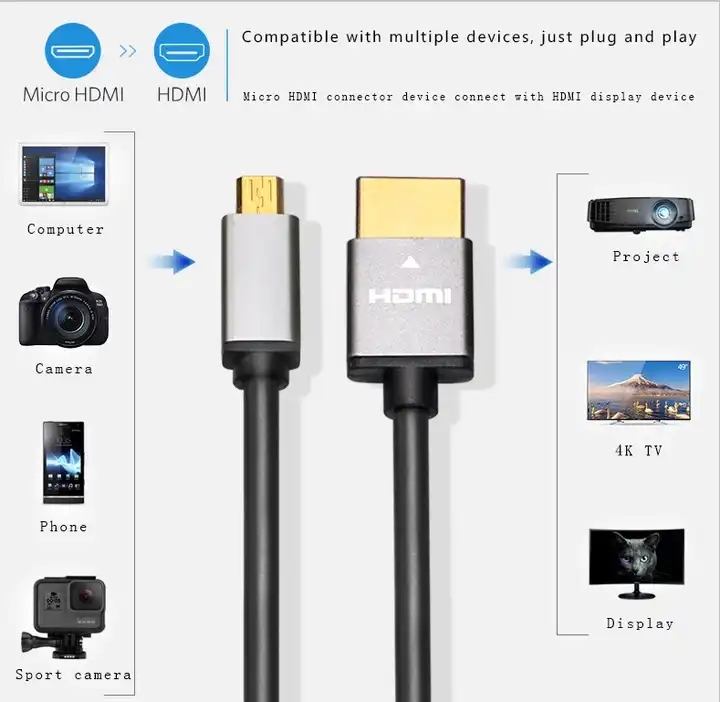

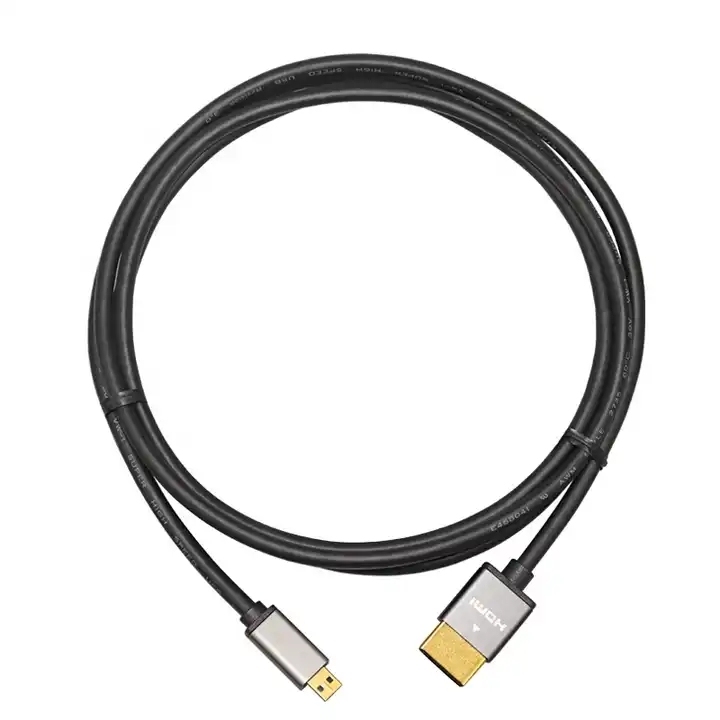

1.【Micro-Cable Connectivity】 The A to D cable offers you a convenient way to optimize your viewing. Connect digital cameras, camcorders, tablets, or other micro Cable-eabled devices to the port on most displays to enjoy the high-definition audio and video.

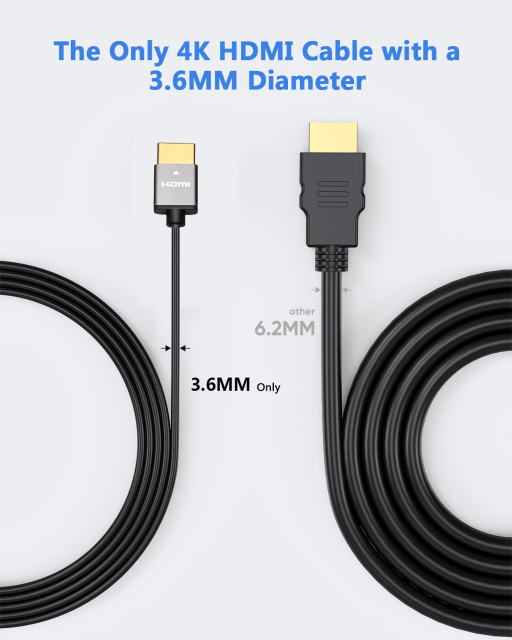

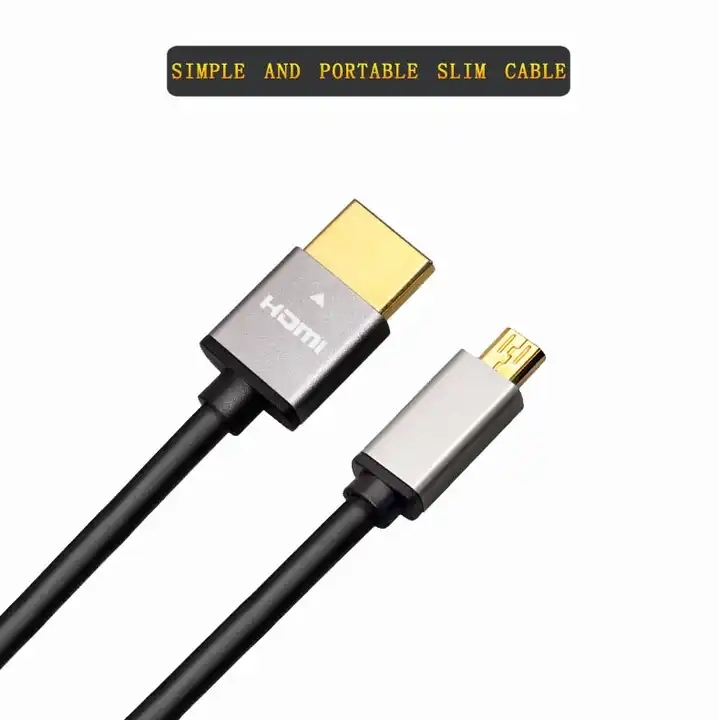

2.【Ultra Thin & Flexible】The ultra-thin and flexible high-speed cable with 3.6mm diameter fits perfectly in tight spaces, designed for gimbal, camera stabilizer, and rigs applications where flexibility and compact cable routing is required.
3.【High-Speed Cable】Ultra thin 2.0 version standard cable supports Ultra HD 4K@60Hz, Full HD 1080P, 3D, Ethernet, Audio Return Channel(ARC), HDR, and you can transmit high-resolution sound formats.
4.【4K@60Hz video output】The cable fully supports 4K resolution at 60Hz and 2K resolution at 165Hz with life-like color. You can enjoy big screens and true-to-life 4K visuals for the ultimate visual experience.
Specification:
| Model |
Certified Slim high speed 4K HDMI To Micro Cable |
| Version |
HDMI2.0v( Backwards compatible with earlier version) |
| Conductor Material |
Bare copper |
| Conductor Size |
36AWG (1-1.5M), 34AWG(1-2M).32AWG(1-2M) |
| OD |
36AWG (OD3.6mm),34AWG (OD4.5mm) 32AWG (5.5mm) |
| Wire |
19+1 |
| Connector type |

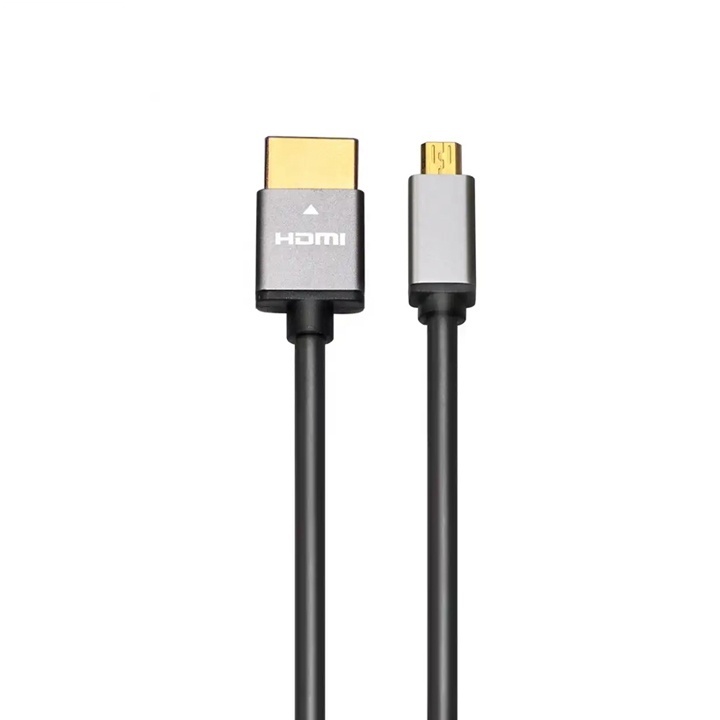

HDMI A Male To D Male |
| Plug |
Gold plated |
| UnShield/Shield |
Double shielded |
| Jacket |
PVC Jacket |
| Connector |
Molding type |
| Resolution |
4K@60Hz /1080P |
| Bandwith |
18Gbps |
| Resolution |
3840X2160P |
| Function |
HDR,HDCP2.2,Dolby atomos |
| Application |
Digital Cameras, Camcorders, Tablets |
| Package |
Giftbox ( Customied logo could be printed on the label of box) |
| Compatible |
Compatible with a video capture card, Raspberry Pi 4, GoPro Hero 7, Hero 6 Hero5, Hero 4, Hero 3, Hero3+, Go Pro Hero 2018, Sony A5000 Handycam, Sony A6500 A6000 A6400 A73 A7S camera, Nikon b500, Canon EOS M50, IdeaPad Miix 300 Tablet, Ideatab Miix 700 Miix 2 710 S6000, ThinkPad 10 8, Yoga 2 Pro 3 ultrabook, Yoga 700 710, 710s, ASUS ZenBook UX305UA, Transformer Mini T102HA. |
| 2.0V HDMI QR CODE Sticker Available lengths |
1m,2m. |
How to choose AWG Spec for different meters:
| AWG |
Conductor |
Length |
Pass HDMI ATC Test |
Image testing (3480*2160 60hz) |
OD |
| 32AWG |
BC |
1-2M |
OK |
OK |
OD5.5mm |
| 34AWG |
BC |
1-2M |
OK |
OK |
OD4.5mm |
| 36AWG |
BC |
1-1.5M |
OK |
OK |
OD3.6mm |
| BC |
2M |
NG |
OK |
| Remark : The cable more slim ,more expensive . |
