Premium HDMI 2.0 Fiber Optic HDMI Cable, AOC, for Long-Distance 10M-100M Performance CL2 FT4 Jacket, support 4k60hz ,HDR ,ARC

Overview:

The HDMI 2.0 Fiber Optic Cable is designed for long-distance performance, delivering uncompressed audio and video signals up to 100m (328ft) without any signal loss. Unlike traditional copper HDMI cables, which suffer from signal degradation beyond 7 meters, this fiber optic cable ensures crystal-clear quality even at extended lengths. Featuring one-direction transmission, a built-in chip, and a fiber optic core, this cable guarantees reliable, high-speed connectivity for the most demanding applications. With additional features like a CL2 FT4-rated jacket and 24K gold-plated connectors, this cable is the ultimate solution for home theaters, gaming setups, and professional AV systems.

Key Features:

• Long-Distance Performance: Maintains signal integrity up to 100m (328ft), unlike copper HDMI cables, which experience signal degradation beyond 7 meters.
• Lighter and more flexible, making it easier to install in tight spaces.
• High-Speed HDMI 2.0: Supports 4K@60Hz, 18bps 3D, HDR, and ARC for immersive viewing experiences.

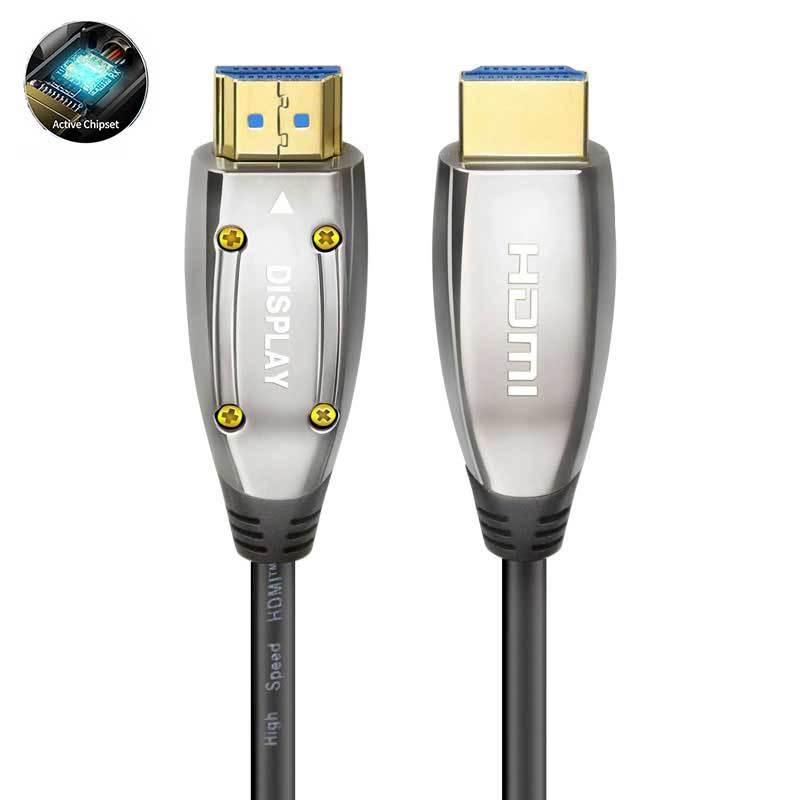

• Built-in Chip & Fiber Optic Core : Equipped with an advanced chipset and  OM3 fiber optic technology for stable, high-bandwidth signal transmission.
• Heavy-Duty 24K Gold-Plated Connectors: Heavy-duty gold-plated plug with 3u on the shell and 15u on the pins ensure superior conductivity and corrosion resistance
• Stranded Tinned Copper Conductors: Delivers unmatched flexibility, corrosion resistance, durability, and signal stability, ideal for high-performance HDMI 2.1 applications, surpassing cost-cutting solid copper alternatives.

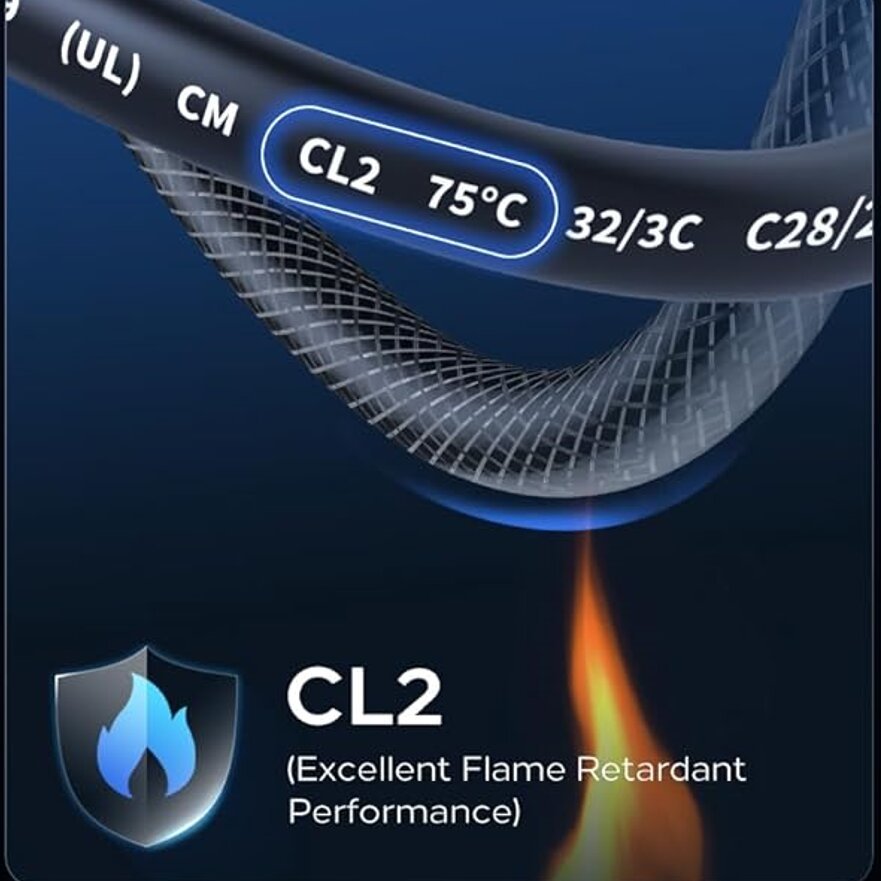

• CL2 FT4 PVC Jacket: Fire-resistant and certified for in-wall installation, ensuring safety and compliance.

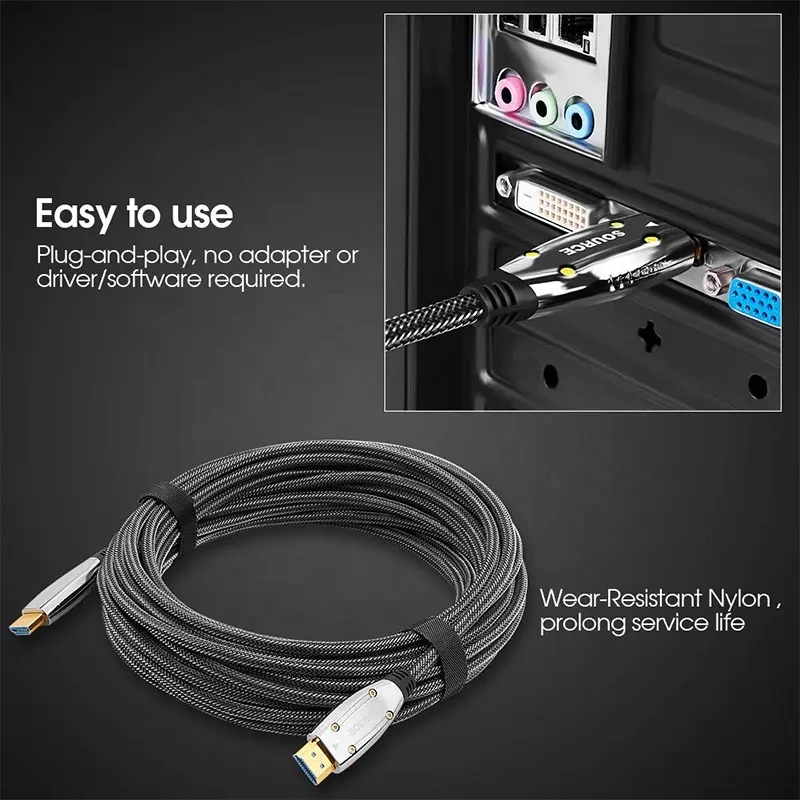

• Plug & Play: Easy to use with no additional power sources or software required.
• Pass ATC SL-881 Test, ensuring superior performance, reliability, and compliance with the latest HDMI standards for seamless 4K60HZ 4:4:4 video and high-speed data transmission.

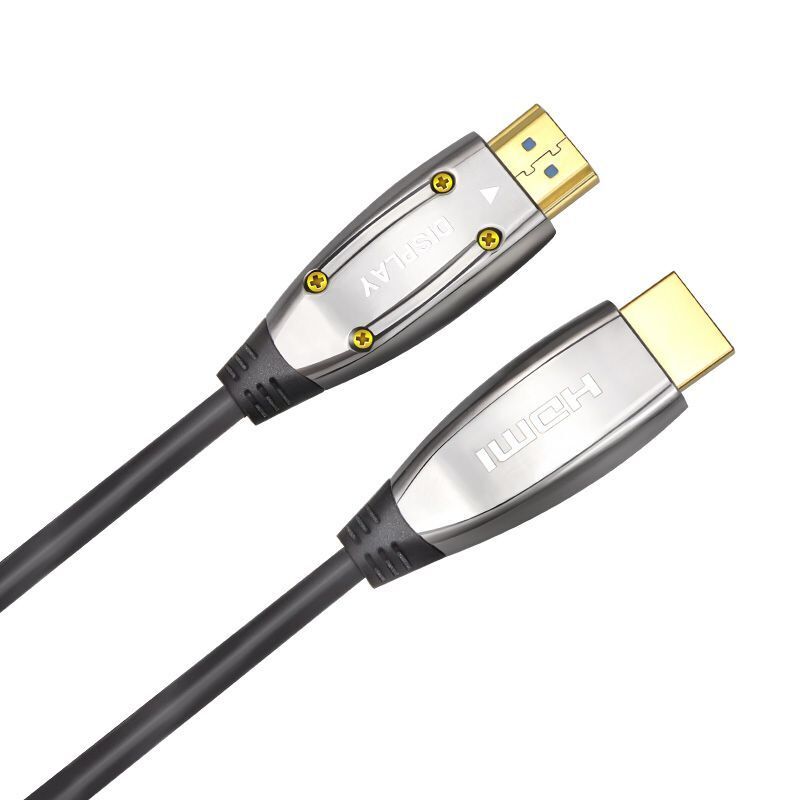

• Note :This cables is directional, with one end specifically labeled "SOURCE" and the other "DISPLAY," ensuring they must be connected in the correct orientation and cannot be reversed.

Specifications:

• HDMI Version:HDMI 2.0
• Connector Type:HDMI A male to A male (Zinc alloy)
• Fiber:OM3 Fiber
• Chip: Silicom line (Germany)
• Conductor:Stranded OFC Conductor
• Certified Cable Length:10m, 15m, 20m, 30m, 40m, 50m up to 100m
• Cable Diameter:OD4.8mm
• Bandwidth:18Gbps
• Resolution Support:4K@60Hz, 1080p@120Hz
• HDR Support:Yes, HDR10,
• ARC Support:Yes
• Other Support:3D, CEC, HDCP2.2
• Cable Material:CL2-FT4 PVC Jacket
• Connector Material:Zinc alloy
• Color:Black (other colors available upon request)
• Operating Temperature:-20°C to +70°C
• Compatibility:Backward compatible with HDMI 1.4 and 1.3

Applications:

• Home Theaters:Perfect for 4K TVs, projectors, and surround sound systems.
• Gaming:Ideal for gaming consoles (PS4, Xbox One) and high-refresh-rate gaming monitors.
• Commercial AV:Suitable for conference rooms, digital signage, and large-scale installations.
• In-Wall Installation:CL2 FT4 rating ensures safe and code-compliant use in walls and ceilings.

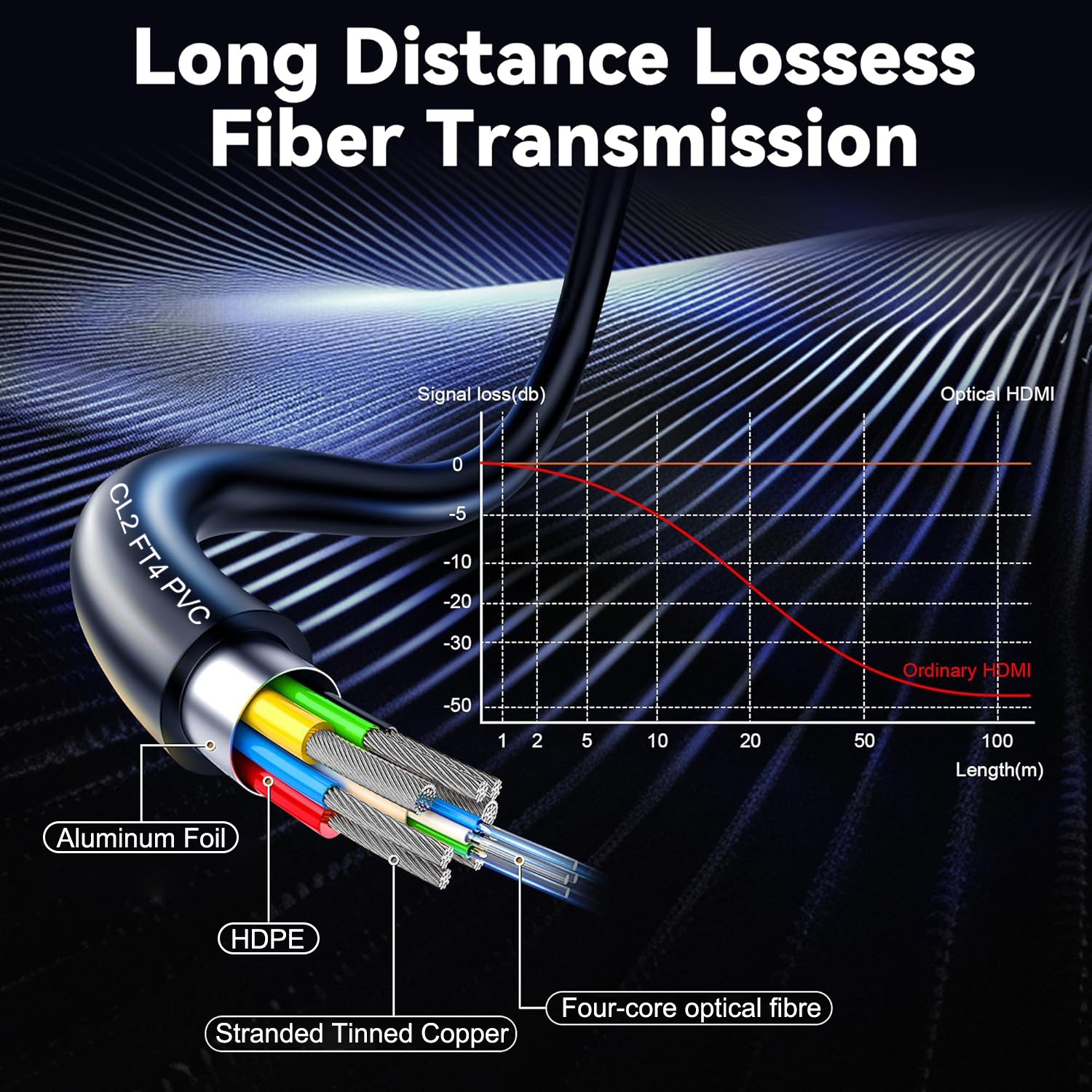

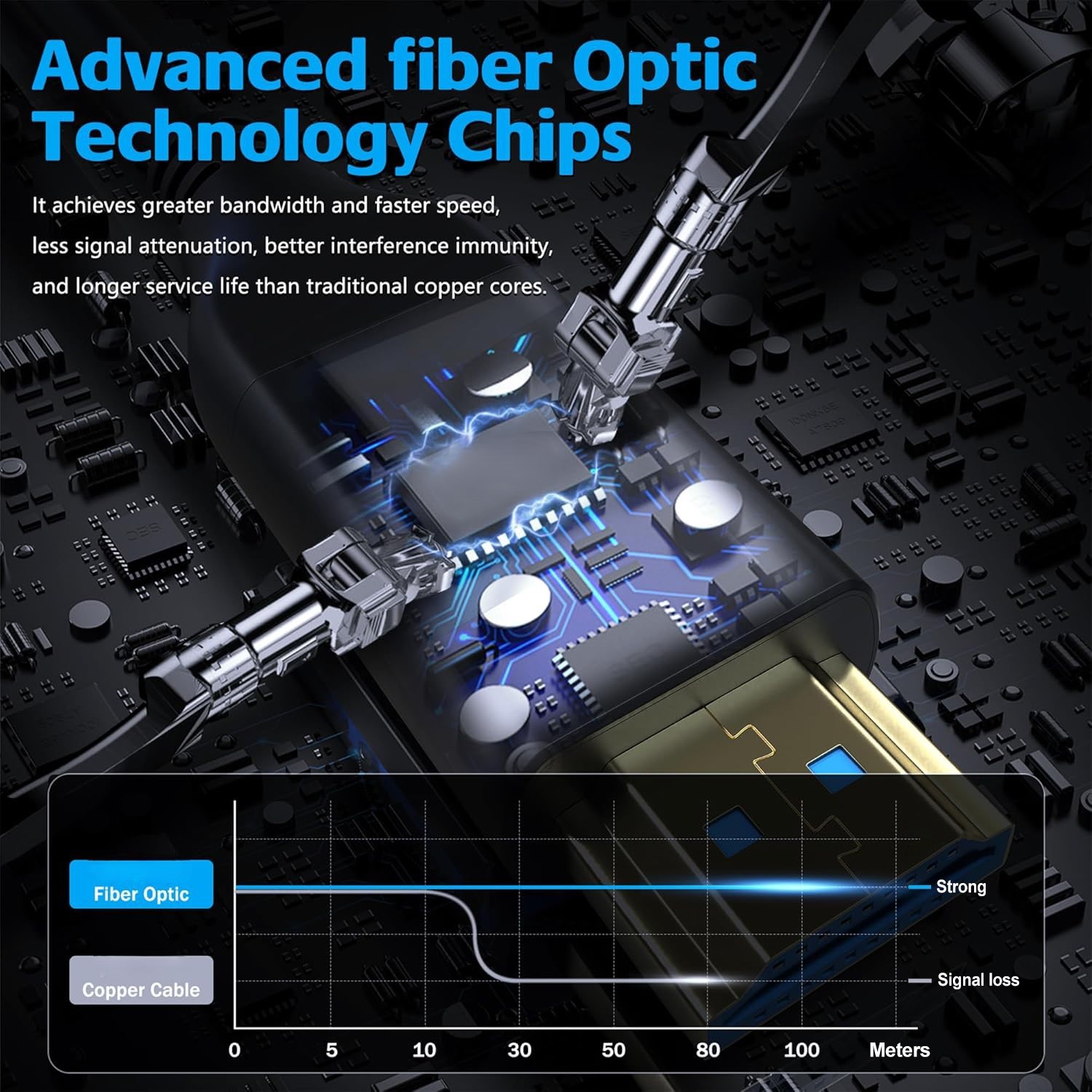

What's the Difference with Copper HDMI?

• Signal Integrity Over Distance:
  • Fiber Optic HDMI:Maintains signal strength and quality over long distances (up to 100m) without degradation.
  • Copper HDMI:Suffers from signal degradation beyond 7 meters, making it unsuitable for long-distance applications.
• Built-in Chip & Fiber Optic Core:
  • Fiber Optic HDMI:Equipped with an advanced chipset and fiber optic core for stable, high-quality transmission.
  • Copper HDMI:Relies solely on copper wires, which are prone to interference and signal loss.
• Weight and Flexibility:
  • Fiber Optic HDMI:Lighter and more flexible,OD4.8mm making it easier to install in tight spaces.
  • Copper HDMI:Heavier and less flexible, OD8.0mm ,OD9.0mm especially in longer lengths.

Fiber Optic HDMI 2.0 Cable – Buyer FAQ (Total 21)

Product Comparison & Technology Differences

1. What’s the difference between fiber optic HDMI 2.0 and regular HDMI 2.0 copper cable?
Fiber HDMI 2.0 supports longer distances (10–100m) with no signal loss, while copper is limited to under 5m. Fiber is also slimmer, lighter, and immune to EMI.

2. What’s the difference between fiber optic HDMI 2.0 and fiber optic HDMI 2.1?
HDMI 2.0 supports 18Gbps and 4K@60Hz; HDMI 2.1 supports 48Gbps, 8K@60Hz, and features like VRR and eARC.

3. What’s the difference between active HDMI 2.0 and fiber optic HDMI 2.0 cables?
Active HDMI uses copper with boosters and for longest 15m; fiber HDMI offers better signal over 100m distances with a slim, lightweight design.

4. What’s the difference between standard A-to-A fiber HDMI and detachable fiber HDMI 2.0?
Detachable fiber HDMI 2.0 cables allow the connector head to be removed for easy installation through tight conduits, while A-to-A versions have fixed connectors.

5. What cable structure do you use?
We use stranded tinned copper + OM3 fiber to ensure stable transmission and durability. Some competitors may use Solid bare copper or lower-grade fiber.

6. What’s the difference between your testing and others?
We perform real 4K TV testing and Most comprehensive and rigorous SL-881 testing systems. Most others only test for basic 4k image testing.

Performance & Feature Support

7. Does this fiber HDMI 2.0 cable support 4K video?
Yes, it supports 4K@60Hz, 1080p@120Hz, and full HD 3D video with deep color and HDR10.

8. What is the data transfer rate of HDMI 2.0 fiber cable?
It supports up to 18Gbps bandwidth, meeting HDMI 2.0b standards.

9. Does the cable support ARC and Dolby Audio?
Yes, it supports ARC (Audio Return Channel), Dolby Digital, Dolby TrueHD, and DTS-HD audio formats.

10. Does HDMI 2.0 support dynamic HDR or VRR?
No, HDMI 2.0 supports static HDR (HDR10), but not dynamic HDR or VRR, which are HDMI 2.1 features.

Compatibility & Use Scenarios

11. What devices can I use with this cable?
It works with PS4, Xbox One, Blu-ray players, 4K TVs, monitors, AV receivers, and projectors with HDMI 2.0 ports.

12. Can I use this cable with a gaming console for 4K@60Hz?
Yes, it supports smooth 4K@60Hz gaming for PS4 Pro, Xbox One X, and compatible PCs.

13. Is this cable suitable for home theater or ceiling projector installation?
Yes, it's ideal for long-distance AV setups, in-wall runs, or ceiling-mounted 4K projectors.

14. Is it backward compatible with HDMI 1.4 or 1.3?
Yes, the cable is fully compatible with older HDMI versions like 1.4 and 1.3.

15. Will it work with HDMI splitters or matrix switchers?
Yes, as long as the splitter or matrix supports HDMI 2.0 and can pass AOC (Active Optical Cable) signals.

Physical Features & Installation

16. Is the cable directional?
Yes, fiber HDMI cables are unidirectional. One end must connect to the source device, and the other to the display.

17. What is the maximum supported length for HDMI 2.0 fiber?
It can run up to 100 meters with zero signal degradation, supporting full 4K@60Hz over long distances.

18. Is the cable flexible and easy to install in walls?
Yes, it features a slim, lightweight design with a minimum bend radius of about 20mm, ideal for conduit and wall installation.

19. Can it be routed through tight ducts or conduits?
Yes, especially our detachable HDMI 2.0 version, which allows the connector head to pass through narrow openings.

20. Does this cable require external power?
No, the cable draws power directly from HDMI ports and does not require USB or additional power input.

21. Does this good for in-wall use?
Yes ,this cable is CL2-FT4 rated for in-wall use.

What's the difference between your Fiber Optic HDMI 2.1 cable and cheaper alternatives?

The price difference doesn't come from profit margins - Chinese factories generally have similar profit levels. The price variation is primarily due to differences in raw materials and specifications.Some cables may look identical outside, but have completely different internal specs

Our premium fiber optic HDMI 2.1 cables outperform cheaper alternatives in six critical areas, including rigorous testing that ensures unmatched reliability:

1.Gold-Plated Connectors

Ours: 3μm gold plating (superior corrosion resistance, long-lasting performance)
Cheap cables: 0.5–1μm thickness (prone to oxidation, shorter lifespan)

2.Signal Processing Chips

Ours: Silicom Line (Germany) chips (stable, ultra-low latency transmission)
Cheap cables: Generic local chips (higher failure rate, signal instability)

3.Fiber Optic Core

Ours: OM3 fiber (higher bandwidth, lower signal loss for long distances)
Cheap cables: OM2 fiber (limited performance, shorter max distance)

4.Conductor Materials

Ours: Stranded tinned copper (flexible, corrosion-resistant, durable)
Cheap cables: Solid copper (stiff, prone to breakage)

5.Cable Construction

Ours: Higher-grade AWG wiring (ensures full 48Gbps bandwidth at max length)
Cheap cables: Lower AWG (signal degradation )

6.Outer Jacket

Ours: CL2/FT4-rated PVC (fire-resistant, in-wall safe for professional installations)
Cheap cables: Standard PVC (not rated for safety or durability)

7.Rigorous Testing (Key Advantage!)

Ours: 100% tested with HDMI Association-professional SL-890 equipment + real 8K TV validation (ensures flawless compatibility & performance)
Cheap cables: Only basic 8K TV testing (not professional , higher risk of failures)

Why Choose us

1. Fiber optic HDMI is a high-end product that requires precision manufacturing and strict testing. Many factories skip proper validation because SL-890 testers are extremely expensive—only top-tier factory are willing to invest in them.

2. We supply fiber optic HDMI cables to UGREEN, the largest e-commerce brand in China. We have passed their rigorous product testing and quality standards.

For guaranteed 8K/48Gbps performance, choose our fiber HDMI 2.1 cables—engineered for reliability!

1. Real-World 4K TV Testing with ARC Functionality

2. Gaming Console Compatibility Verification

3. Eye Diagram Testing (Simplaylabs SL 881)

4. Tensile Strength Testing – Built to Last

5. Cleanroom Manufacturing for Precision

1. Real-World 8K TV Testing with eARC Functionality

2. PS5 Performance Verification

3. Simplaylabs SL-890 Compliance Testing



4. Tensile Strength Testing – Durability Assurance

5. Dust free workshop  for High-End Production

MOQ & Lead Time

1. What is your MOQ (Minimum Order Quantity)?
Standard MOQ is 14 pcs per model (14pcs/Carton) for Fiber optic HDMI cable.

2. What is the lead time for bulk orders?
25-30 days after payment confirmation (depending on order size and customization).

Samples & Payment

3. Do you offer free samples?
Free samples are available for bulk-order buyers, but shipping costs are charged.

4. What are your payment terms?
T/T (30% deposit, 70% before shipment).

Packaging & Shipping

5. What is your packaging option?
Custom packaging (Polybag, blister, retail box, eco-friendly) is available.

6. Which shipping methods do you support?
By sea (FCL/LCL), air freight, or express (DHL/FedEx/UPS) for urgent orders.

8. Can you ship to my country?
We ship globally and handle customs documentation (INCOTERMS: FOB, CIF, or EXW).

Warranty & Services

7. Do you provide warranty?
Yes, we provide replacement for defective products.

9. Do you provide OEM/ODM services?
Yes, we offer custom branding, packaging, and cable specifications (length, connectors, etc.) for bulk orders.

Quotation

10. How can I request a quote?
Email us with your specifications (length, quantity, packaging, etc.) for a detailed quotation.

Ready to discuss your order?
Contact us with your requirements for a tailored solution!
