HDFO2001
Overview:

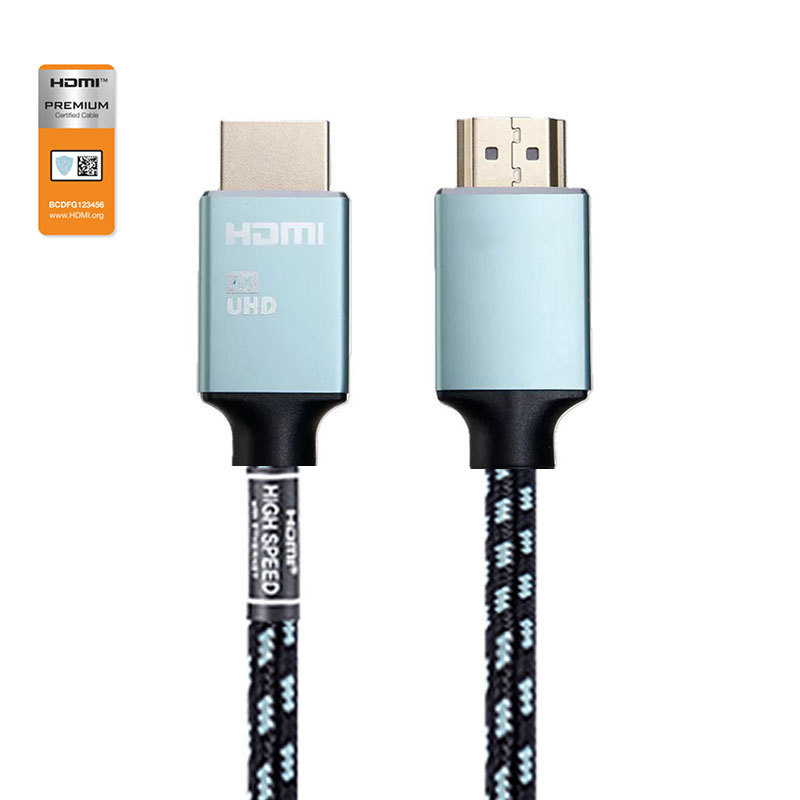

The Certified HDMI 2.0 Cable with High-End Aluminum Shell, Cotton Mesh, and 24K Gold-Plated Plug is designed to deliver exceptional performance for your home theater, gaming, and professional AV systems. Officially certified for 4K@60Hz and 1080p resolutions, this cable ensures flawless transmission of ultra-high-definition video and audio signals. Featuring a high-end aluminum shell for superior durability and corrosion resistance, a cotton mesh exterior for enhanced flexibility and a premium aesthetic, and a 24K gold-plated copper plug (3µ on shell, 15µ on pins) for superior conductivity and corrosion resistance, this cable is built to withstand frequent use in various environments. The Oxygen-Free Copper (OFC) conductors guarantee minimal signal loss, providing the highest quality audio and video performance. Whether you're connecting a 4K TV, gaming console, or AV receiver, this HDMI 2.0 cable is designed for reliability and long-lasting performance.
Features:
Specifications:
Applications:
4KHDMI 2.0 Cable – 4K@60Hz / 18Gbps / ARC/HDR for Gaming, TV, Monitor
Experience true 4K performance with our high-quality HDMI 2.0 cable, designed for seamless connection between your TV, gaming consoles, monitors, projectors, and home theater systems. Supporting up to 4K@60Hz resolution, 18Gbps bandwidth, and advanced features like ARC, HDR, and 3D video, this cable delivers ultra-clear visuals and immersive sound for all your entertainment and work needs.
Whether you're gaming, enjoying family movie night, or giving a professional presentation, our HDMI 2.0 cable ensures stable transmission, zero lag, and crystal-clear output across all devices.
Features
1,Supports 4K@60Hz Resolution
Perfect for gaming consoles, home entertainment systems, and 4K TVs — delivers smooth, vibrant video output
2.18Gbps High-Speed Transmission
Ensures fast, stable signal with no delay or distortion — great for large screen projection and video playback
3.Audio Return Channel (ARC) Support
Enables two-way audio between your TV and soundbar or AV receiver, simplifying your setup
4.Multiple Modes: Mirror / Extend / Game Mode
Customize your screen setup for work, entertainment, or gaming
5.Universal Compatibility
Works with laptops, PS4, Xbox, projectors, monitors, AV receivers, and more
6.Full Function HDMI 2.0 Spec
Backward compatible with HDMI 1.4; supports HDR, 3D, HDCP 2.2, CEC, and Ethernet channel
Product Comparison
1. What is the difference between HDMI 2.0 and HDMI 2.1 cables?
HDMI 2.0 supports 4K@60Hz at 18Gbps. HDMI 2.1 supports 8K@60Hz or 4K@120Hz at 48Gbps, with eARC, VRR, and Dynamic HDR.
2. What is the difference between certified HDMI 2.0 cables and non-certified ones?
Certified HDMI 2.0 uses BC conductors, higher AWG, and supports 4K@60Hz 4:4:4. All are verified for full 18Gbps transmission and 4K@60Hz 4:4:4 performance.
Non-certified uses CCS, lower AWG, often limited to 4K@60Hz 4:2:0 beyond 3–5m.
3. What structural differences exist between certified and non-certified HDMI 2.0 cables?
Certified HDMI 2.0 cables follow strict AWG standards: 1–3m (30AWG), 5m (26AWG), 10m (26AWG + chip), 15m (24AWG + chip). Non-certified versions may use thinner wires: 5–7.5m (28AWG), 8–10m (26AWG), and even below-standard AWG in some cases. Certified models typically use 19+1 conductors, while non-certified may use 14+1.
4. What is the difference between 14+1 and 19+1 conductor structures?
19+1 is the standard full-pin configuration used in certified HDMI 2.0 cables. 14+1 omits five data lines, reducing functionality and limiting support to 1080p or 4K@30Hz. It is not suitable for HDR or full 4K@60Hz transmission.
5. What conductor materials are used in certified vs. non-certified HDMI 2.0 cables?
Certified HDMI 2.0 cables use high-purity bare copper (BC), which ensures better conductivity and signal quality. Non-certified options often use copper-clad aluminum (CCA), which is more cost-effective but less stable.
6. What is the difference between 4K@60Hz 4:2:0 and 4K@60Hz 4:4:4?
4:4:4 provides full-color, uncompressed video and is ideal for text, PC monitors, and high-detail visuals. 4:2:0 reduces color data to save bandwidth. Certified HDMI 2.0 cables can transmit 4:4:4, while lower-quality cables often fall back to 4:2:0 after 3m.
7. How do certified and non-certified HDMI 2.0 cables differ in testing?
Certified cables pass SL-881 signal tests and 4K@60Hz 4:4:4 verification. Non-certified cables are typically only tested on a 4K TV screen and often fail full 18Gbps integrity.
8. What is the EMI shielding difference between certified and non-certified HDMI 2.0 cables?
Certified HDMI 2.0 cables include metal shielding or foil inside the connector housing to enhance EMI suppression. Non-certified models often lack internal shielding, making them more vulnerable to interference.
9. What is the difference between Passive and Active HDMI 2.0 cables?
Passive cables rely on the signal strength from the source and work reliably up to 5m. Active HDMI 2.0 cables include an internal chip to boost signal integrity, enabling longer lengths of up to 10–15m without degradation.
Certification & Compliance
10. Do you offer certified HDMI 2.0 cables? What lengths are available?
Yes. We offer certified HDMI 2.0 cables in 1m, 2m, 3m, and 5m lengths. All are verified for full 18Gbps transmission and 4K@60Hz 4:4:4 performance.
11. Why are some HDMI 2.0 cables on the market extremely cheap?
Low-cost HDMI 2.0 cables often use inferior materials like CCS or CCA, lack proper shielding, and don't meet bandwidth specs. These may only support 4K@30Hz or fail during high-speed transmission tests.
Compatibility & Application
12. What devices are HDMI 2.0 cables compatible with?
They work with TVs, monitors, projectors, Blu-ray players, gaming consoles (PS4/Xbox), streaming devices (Roku, Fire Stick), and AV receivers supporting 4K@60Hz.
13. What HDMI 2.0 connector types are available?
We provide HDMI A to A (standard), HDMI A to C (Mini HDMI), and HDMI A to D (Micro HDMI), compatible with laptops, cameras, drones, and tablets.
14. What jacket types are available for HDMI 2.0 cables?
Options include standard PVC, CL3-rated flame-retardant PVC (for lengths over 5m), nylon braided, and cotton mesh jackets, depending on durability, flexibility, and installation needs.
15. Do your HDMI 2.0 cables support HDR and Dolby Vision?
Yes. All 18Gbps HDMI 2.0 cables support HDR10, HLG, and Dolby Vision for vibrant color and contrast on compatible TVs.
16. Do your cables support ARC and CEC functions?
Yes. All models support ARC (Audio Return Channel) and CEC (Consumer Electronics Control), allowing device control and soundbar integration over HDMI.
Design & Quality
17. What are the outer diameters of your HDMI 2.0 cables?
Slim HDMI 2.0 cables range from 3.6mm to 4.5mm.
Standard PVC HDMI 2.0: 30AWG (6.0mm), 28AWG (7.3mm), 26AWG (8.0mm), 24AWG (9.0mm).
Fiber optic HDMI 2.0: 4.8mm.
18. What is the maximum cable length for full 18Gbps performance?
Passive cables work up to 5m for full 18Gbps. For 10m–15m, active HDMI 2.0 cables with internal signal-boosting chips are required.
19. Can HDMI 2.0 cables be used for in-wall or commercial installations?
Yes. We offer CL3-rated HDMI 2.0 cables suitable for in-wall wiring and commercial AV systems. They meet flame-retardant and safety requirements.
20. Can you develop a new HDMI 2.0 mold or custom cable for our brand?
Yes. If our current designs don't meet your needs, we can develop a custom mold for your brand. A tooling/mold fee is required.
How to Choose Your Right HDMI 2.0 Cable?
HDMI 2.0 cables may look similar on the outside, but internal materials and specifications make a big difference in performance, certification, and price. Chinese factories typically work on same margins—the real cost variation comes from raw materials and specification.
It is influenced by these 8 aspects: Please compare the price based on same spec .
1. Do You Need Non-Standard 14+1 or Standard 19+1 Structure?
• 14+1 Non-Standard: Reduced 5 core wires, only suitable for very short lengths. May cause compatibility issues with some devices. Some cheap cables on the market use this structure.
• 19+1 Standard: Full HDMI 2.0 compliance, recommended for all lengths and professional use.
🟡 Recommendation:
• Cost Ranking: 14+1 < 19+1
• Market Preference: 19+1 is the most common choice for reliable performance. 14+1 is only considered for very cost-sensitive projects where compatibility risk is acceptable.
2. Do You Need EMI Shielding Inside the Plug?
• Ordinary Inner Mold: Basic shielding for general use.
• Copper Foil: Enhanced EMI protection, reduces interference.
• Tinplate: Premium shielding for high-performance environments.
🟡 Recommendation:
• Cost Ranking: Ordinary < Copper Foil < Tinplate
• Market Preference: Ordinary inner mold is standard for most applications. Copper Foil or Tinplate are only specified when required for premium certified cables or special EMI-sensitive environments.
3. What Type of Connector Housing Do You Need?
• Molding: Basic one-piece plastic, cost-effective but limited durability.
• ABS: Stronger plastic with better heat/impact resistance.
• Aluminum Shell: Improves EMI shielding and heat dissipation.
• Zinc Alloy: Premium metal case with superior durability.
🟡 Recommendation:
• Cost Ranking: Molding < ABS < Aluminum < Zinc Alloy
• Market Preference: Molding is the most common and economical choice. Aluminum and Zinc Alloy are reserved for high-end professional applications.
4. Which Plug Type Best Suits Your Needs?
• Standard HDMI A to A: Works with all standard HDMI ports.
• Snug-Fit A to A: Tighter grip for stable connection. Available for selected models only.
🟡 Recommendation:
• Cost Ranking: Standard < Snug-Fit
• Market Preference: Standard connectors are widely used, while Snug-Fit adoption is growing in commercial installations where secure connections are critical.
5. Do You Have a Special Request for Gold Plating?
• Standard Gold (0.5–1μm): Basic protection for daily use.
• 3μm Gold: Thicker layer for stronger corrosion resistance. Optional and rarely requested.
🟡 Recommendation:
• Cost Ranking: Standard < 3μm
• Market Preference: Standard gold plating satisfies requirements for majority of applications.
6. What Conductor Material Do You Prefer?
• CCS (Copper-Clad Steel): Budget-friendly but higher resistance.
• Solid Bare Copper: Stable signal, lower loss.
• Stranded Tinned Copper: Flexible and durable for high-end cables.we use it for Ultra slim hdmi2.0 and Fiber optic hdmi2.0
🟡 Recommendation:
• Cost Ranking: CCS < Solid Copper < Stranded Tinned Copper
• Market Preference: Solid Copper offers best balance for most applications. CCS is cheaper (especially in 14+1 configuration) is the most budget-conscious option.
7. Do You Need Premium Certified or Non-Certified Cables?
• Non-Certified: Only pass 4K TV image test. Lower AWG,supports 4K@60Hz 4:2:0 only beyond 3m – a compressed color format that lowers bandwidth.
• Structure Example:1–3M: 30AWG/ 5–7.5M: 28AWG / 8–10M: 26AWG/ 15M: 24AWG
• Advantage: Lower cost and basic 4K compatibility for TVs and home use.
• Limitation: Not suitable for full-bandwidth content like high-end gaming or professional displays.
• Certified (Pass Simplaylabs 881 Eye patten test):True 4K , High AWG, Uses thicker conductors, ensures full HDMI 2.0 compliance with 18Gbps bandwidth. Supports 4K@60Hz 4:4:4 – uncompressed format with full color fidelity.
• Structure Example:1–3M: 30AWG/ 5M: 26AWG/ 10M: 26AWG + CHIP/ 15M: 24AWG + CHIP
• Advantage: Guarantees full color depth, sharper text, stable signal in demanding applications like gaming monitors, 4K editing setups, or professional AV.
🟡 Recommendation:
• Cost Ranking: Non-Certified < Certified Or (30AWG< 28AWG<26AWG<24AWG)
• Market Preference: Certified cables are mandatory for professional applications. Non-certified are common in consumer markets where cost is primary concern.
8. What Outer Jacket Material Do You Prefer?
• PVC: Basic flexible jacket.
• CL3-Rated PVC: Fire-resistant for in-wall use (Note: required for lengths exceeding 5m when specially requested).
• Nylon Braided: Premium tangle-free surface.
• Cotton Mesh: Soft-touch luxury option.
🟡 Recommendation:
• Cost Ranking: PVC < CL3 PVC < Nylon < Cotton
• Market Preference: PVC is standard for most applications. CL3 is specified for in-wall installations over 5m. Nylon braided and cotton mesh is for high end .
Why Choose Us
Certified for All Lengths (1M–5M): Few HDMI factories in China are certified for multiple cable lengths.
Official Supplier to MONSTER CABLE: We manufacture 4K and 8K HDMI cables for MONSTER CABLE.
Final Step
To help us recommend the best HDMI 2.0 cable:
Specify your preferences for each feature, OR
Share your target price for optimized configuration.
We're ready to provide a customized solution tailored to your needs.
PREMIUM HDMI CABLE CERTIFICATION PROGRAM
Premium High Speed HDMI® cables are tested to ensure quality for feature-rich 4K/Ultra-HD content
The Premium HDMI® Cable Certification ProgramTM encompasses additional and enhanced cable testing as well as an authentication and verification program for High Speed HDMI Cables.Cables are tested to ensure they support the full 18Gbps bandwidth with an EMI test to ensure cables minimize interference with wireless signals.
The program is designed to give end users confidence when purchasing new HDMI® cables for their 4K/UltraHD products that may include features such as 4K@60Hz, BT.2020 and HDR. Participating HDMI Adopters can promote their HDMI ATC-tested High Speed HDMI Cables as Premium High Speed HDMI Cables or Premium High Speed HDMI Cables with Ethernet using a unique anti-counterfeiting authentication label on their products.
These special cables are available with both HDMI Type-A and Type-D Connectors and the specification also supports HDMI Converter Cables including HDMI Active Optical Cables.
Trust the cable with the label

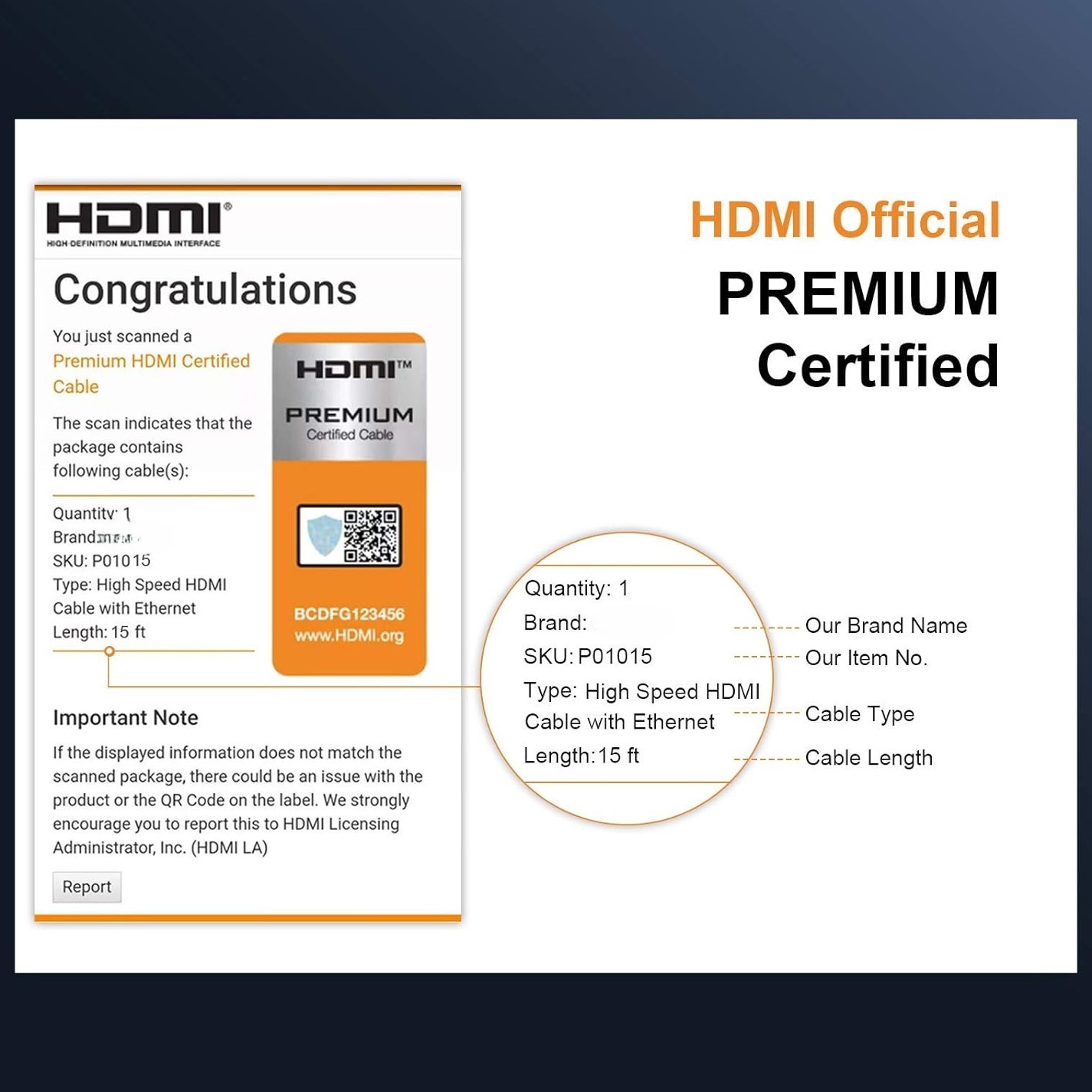

Certification assurance makes sure cables are authentic and certified throughout the supply chain. Only authorized HDMI adopters who participate in this special program can order labels via the HDMI Adopter secure extranet.
New HDMI Cable Certification Labels
The HDMI Cable Certification Program supporting Premium High Speed HDMI Cables is changing to a new generation (Gen 2) label. The original Gen 1 labels in the market will continue to be supported with the proprietary scanning app for the immediate future. Please note that consumers will be seeing two versions of the labels and they use different scanning apps. Please download the informational brochure for complete details here
Shopping for the HDMI Cables Just Got Easier
Shopping for HDMI® Cables can be confusing. Resellers may use a variety of marketing terms and may not use the official HDMI Cable name designations, and many websites may recommend cables only based on receiving affiliate payments. And worst of all – some cables are counterfeits.
The Verification Banners are an optional add-on to the existing HDMI Cable Certification Program. The website banners enable consumers to verify the certification status of cables while shopping on manufacturer and reseller websites. The Verification Banners can be either clicked or scanned, displaying the brand name, model number and length - the same as when scanning the physical Certification Labels affixed to the cable packaging.
This HDMI cable certification program is administered by the agent for the HDMI Specification, HDMI Licensing Administrator, Inc. and:
Participants
Participants in the Premium HDMI Cable Certification Program are HDMI Adopters who have signed up and qualified for the program. These Participants may be represented as brand names in the marketplace or supply manufacturers who go to market with their own brand names. When labels are scanned the results will display the in-the-market brand name that should appear on the package
The Adopted Trademarks Premium HDMI Cable Certification Program, Premium High Speed HDMI Cable, Premium High Speed HDMI Cable with Ethernet, the Premium HDMI Cable label, and the Premium HDMI Cable Logo, are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
HDMI 2.0 Cable Quality Control
Professional Assurance for High-Definition AV Applications
1. Real-World 4K Image Test
2. Real-World PS5 Testing
3. SimplayLabs SL-881 Eye Diagram Testing
Order Quantity and Samples
What is your MOQ (Minimum Order Quantity)?
Standard MOQ is 500 pcs per model, but we accept smaller trial orders for new buyers.
Do you offer free samples?
Free samples are available for bulk-order buyers, but shipping costs are charged.
Order Processing and Lead Time
What is the lead time for bulk orders?
25-30 days after payment confirmation (depending on order size and customization).
How can I request a quote?
Email us with your specifications (length, quantity, packaging, etc.) for a detailed quotation.
Payment Terms
What are your payment terms?
T/T (30% deposit, 70% before shipment).
Packaging and Shipping
What is your packaging option?
Custom packaging (Polybag, blister, retail box, eco-friendly) is available.
Which shipping methods do you support?
By sea (FCL/LCL), air freight, or express (DHL/FedEx/UPS) for urgent orders.
Can you ship to my country?
We ship globally and handle customs documentation (INCOTERMS: FOB, CIF, or EXW).
Warranty and Services
Do you provide warranty?
Yes, we provide replacement for defective products.
Do you provide OEM/ODM services?
Yes, we offer custom branding, packaging, and cable specifications (length, connectors, etc.) for bulk orders.
