HDFO2001
Overview:
The Premium Fiber Optic HDMI 2.1 Cable (AOC) redefines long-distance AV performance with its armored construction and cutting-edge Active Optical Core. Designed for professional and home use, this cable delivers uncompressed 8K@60Hz or 4K@120Hz signals up to 100 meters without signal loss—far outperforming traditional copper HDMI cables. Its heavy-duty braided armor protects against physical stress, while the TPU Jacket ensures safety in demanding environments. With bidirectional transmission, gold-plated connectors, and HDMI 2.1 features like VRR and eARC, this cable is the ultimate choice for home theaters, gaming, and commercial AV systems.
Key Features:
Specifications:
Applications:
Please email me for the clear certification document
1. What’s the difference between fiber optic HDMI 2.1 and regular HDMI 2.1 copper cable?
Fiber optic HDMI 2.1 uses optical fiber + copper hybrid for long-distance 10m-100m transmission without signal loss, while copper HDMI 2.1 is limited to short runs (under 8m) and more prone to EMI.And Fiber optic hdmi cable is more slim (OD4.8mm only),lightweight and flexible .
2. What’s the difference between fiber optic HDMI 2.1 and fiber optic HDMI 2.0?
HDMI 2.1 supports 48Gbps bandwidth, enabling 8K@60Hz, 4K@120Hz, and dynamic HDR; HDMI 2.0 is limited to 18Gbps and maxes out at 4K@60Hz.
3. What’s the difference between active HDMI 2.1 and fiber optic HDMI 2.1 cables?
Active HDMI uses signal boosters over copper delivery 15m longest only; fiber HDMI uses optical transmission, delivering better stability over 10–100m with no signal degradation.
4. What’s the difference between standard A-to-A fiber HDMI and detachable fiber HDMI?
A-to-A cables have fixed connectors. Detachable fiber HDMI cables feature removable heads, ideal for easy installation in conduit or narrow walls.

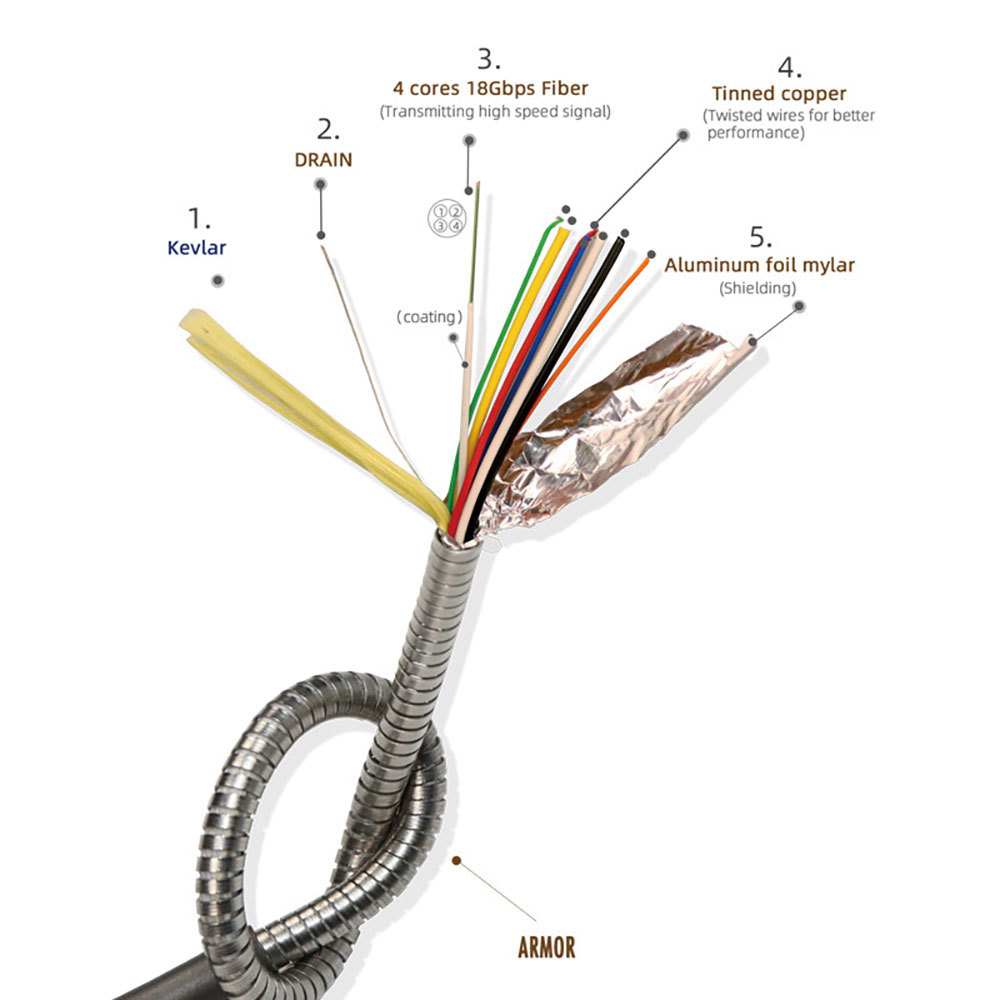

5. What cable structure do you use?
We use stranded tinned copper + OM3 fiber, which ensures flexibility and signal integrity. Many other factories use single-core bare copper + OM2 fiber for lower cost.
6. What’s the difference between your testing and others?
We perform actual 8K TV testing and pass the SL-890 protocol test, which is the most comprehensive and rigorous in the industry. Most other companies only check for basic 8K image display.
7. Does this fiber HDMI 2.1 cable support 8K video?
Yes, it fully supports 8K@60Hz, 4K@120Hz, HDR10+, Dolby Vision, and Dolby Atmos for immersive home theater.
8. What is the data transfer rate of HDMI 2.1 AOC?
It supports full HDMI 2.1 bandwidth of 48Gbps, ensuring uncompressed high-frame-rate video and audio.
9. Does the cable support eARC and Dolby Atmos?
Yes, it supports eARC, providing lossless audio transmission including Dolby TrueHD and DTS-HD Master Audio.
10. Is the cable compliant with VRR, ALLM, and dynamic HDR?
Yes, HDMI 2.1 AOC supports VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and dynamic HDR.
11. What devices can I use with this cable?
Compatible with PS5, Xbox Series X, NVIDIA RTX graphics cards, 8K TVs, AV receivers, Apple TV 4K, and high-end projectors.
12. Can I use this cable with a gaming console for 4K@120Hz?
Yes, it's ideal for PS5 and Xbox Series X gaming at 4K 120Hz with HDR and no latency.
13. Is this cable suitable for home theater or AV rack installation?
Yes, it’s designed for long-distance installations in home cinema systems, projectors, and in-wall setups.
14. Is it backward compatible with HDMI 2.0 or 1.4 devices?
Yes, the cable is fully backward compatible with HDMI 2.0, 1.4, and earlier versions.
15. Will it work with HDMI switches or splitters?
Yes, it works with most HDMI 2.1 switches/splitters, provided they support active optical signals.
16. Is the cable directional?
Yes, fiber HDMI cables are unidirectional. Connect the "Source" end to the output device and the "Display" end to the screen.
17. What is the maximum cable length supported?
Our HDMI 2.1 AOC cables are available in 5m, 10m, 15m,20m.30m up to 100m, maintaining full signal performance.
18. Is it flexible enough for tight bends?

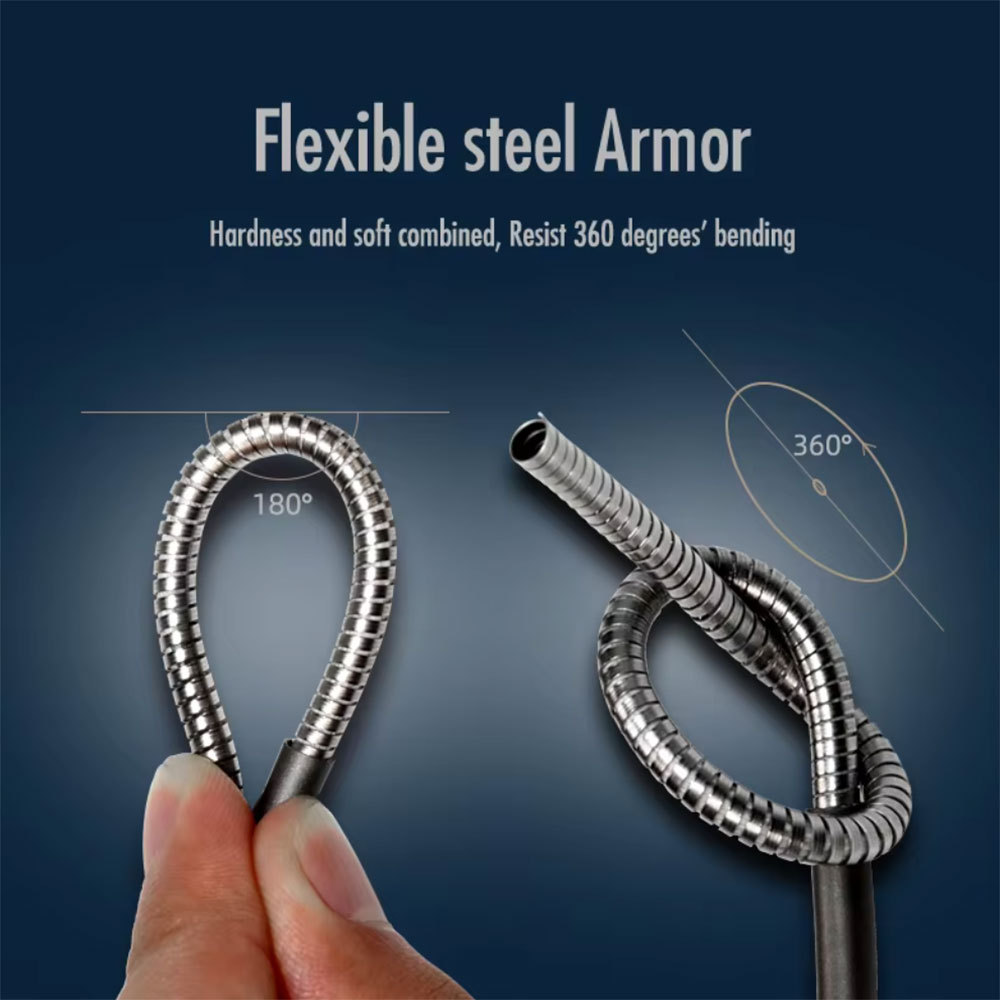

Yes, it has a minimum bend radius of about 20mm, with flexible jackets and reinforced strain relief.if you have better requirment ,you can choose our Armored Fiber optic hdmi2.1 cable for superior protection against bends,twists and external damage

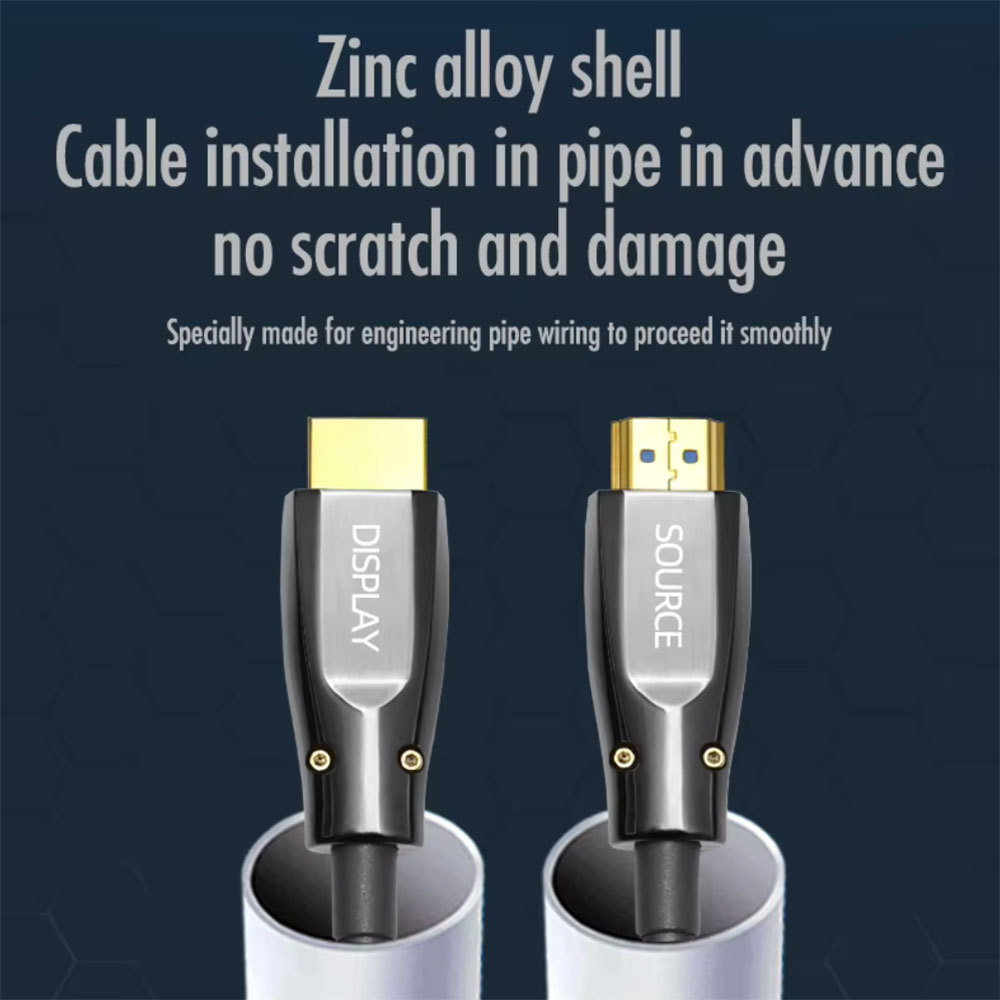

19. Can it be installed through conduit or tight wall spaces?
Yes, especially the detachable head design allows easy routing through narrow ducts or walls.
20. Does it require external power?
No, the cable is self-powered via HDMI port; no external power or USB required.
21. Does it for in-wall installation?
Yes ,our Fiber optic hdmi 2.1 cable is CL2-FT4 rated for in-wall use .
What's the difference between your Fiber Optic HDMI 2.1 cable and cheaper alternatives?
The price difference doesn't come from profit margins - Chinese factories generally have similar profit levels. The price variation is primarily due to differences in raw materials and specifications.Some cables may look identical outside, but have completely different internal specs
Our premium fiber optic HDMI 2.1 cables outperform cheaper alternatives in six critical areas, including rigorous testing that ensures unmatched reliability:
1.Gold-Plated Connectors
Ours: 3μm gold plating (superior corrosion resistance, long-lasting performance)
Cheap cables: 0.5–1μm thickness (prone to oxidation, shorter lifespan)
2.Signal Processing Chips
Ours: Silicom Line (Germany) chips (stable, ultra-low latency transmission)
Cheap cables: Generic local chips (higher failure rate, signal instability)
3.Fiber Optic Core
Ours: OM3 fiber (higher bandwidth, lower signal loss for long distances)
Cheap cables: OM2 fiber (limited performance, shorter max distance)
4.Conductor Materials
Ours: Stranded tinned copper (flexible, corrosion-resistant, durable)
Cheap cables: Solid copper (stiff, prone to breakage)
5.Cable Construction
Ours: Higher-grade AWG wiring (ensures full 48Gbps bandwidth at max length)
Cheap cables: Lower AWG (signal degradation )
6.Outer Jacket
Ours: CL2/FT4-rated PVC (fire-resistant, in-wall safe for professional installations)
Cheap cables: Standard PVC (not rated for safety or durability)
7.Rigorous Testing (Key Advantage!)
Ours: 100% tested with HDMI Association-professional SL-890 equipment + real 8K TV validation (ensures flawless compatibility & performance)
Cheap cables: Only basic 8K TV testing (not professional , higher risk of failures)
Fiber optic HDMI is a high-end product that requires precision manufacturing and strict testing. Many factories skip proper validation because SL-890 testers are extremely expensive—only top-tier factory are willing to invest in them.
We supply fiber optic HDMI cables to UGREEN, the largest e-commerce brand in China. We have passed their rigorous product testing and quality standards.
For guaranteed 8K/48Gbps performance, choose our fiber HDMI 2.1 cables—engineered for reliability!
1. Real-World 8K TV Testing with eARC Functionality
2. PS5 Performance Verification
3. Simplaylabs SL-890 Compliance Testing
4. Tensile Strength Testing – Durability Assurance
5. Dust free workshop for High-End Production
MOQ & Lead Time
1. What is your MOQ (Minimum Order Quantity)?
Standard MOQ is 14 pcs per model (14pcs/Carton) for Fiber optic HDMI cable.
2. What is the lead time for bulk orders?
25-30 days after payment confirmation (depending on order size and customization).
Samples & Payment
3. Do you offer free samples?
Free samples are available for bulk-order buyers, but shipping costs are charged.
4. What are your payment terms?
T/T (30% deposit, 70% before shipment).
Packaging & Shipping
5. What is your packaging option?
Custom packaging (Polybag, blister, retail box, eco-friendly) is available.
6. Which shipping methods do you support?
By sea (FCL/LCL), air freight, or express (DHL/FedEx/UPS) for urgent orders.
8. Can you ship to my country?
We ship globally and handle customs documentation (INCOTERMS: FOB, CIF, or EXW).
Warranty & Services
7. Do you provide warranty?
Yes, we provide replacement for defective products.
9. Do you provide OEM/ODM services?
Yes, we offer custom branding, packaging, and cable specifications (length, connectors, etc.) for bulk orders.
Quotation
10. How can I request a quote?
Email us with your specifications (length, quantity, packaging, etc.) for a detailed quotation.
