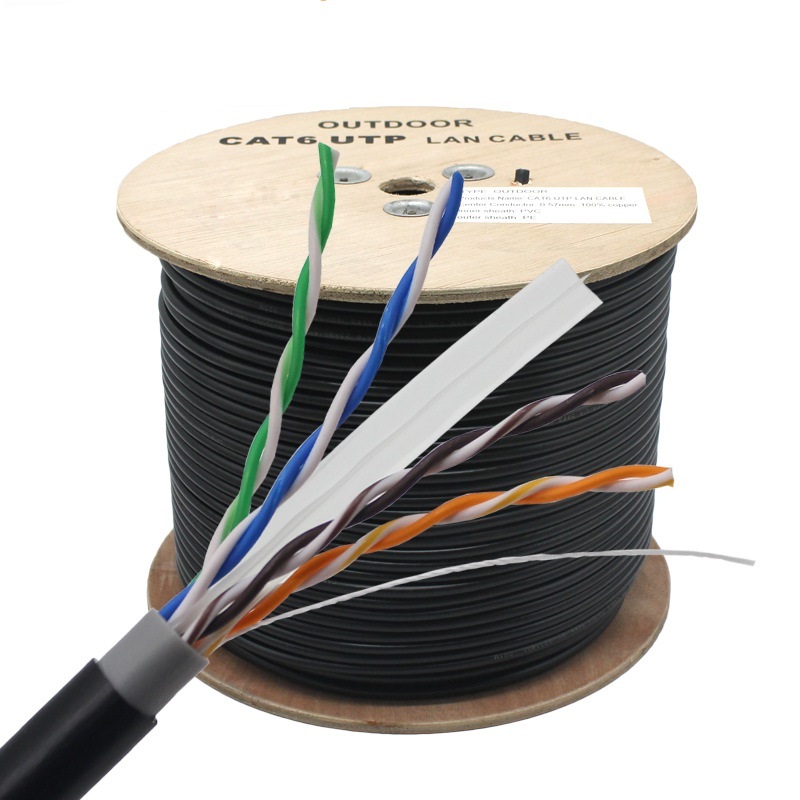

Outdoor CAT6 U/UTP BC Waterproof PVC Cable 305m - Durable Unshielded Ethernet Cable with Bare Copper, Fluke Test passed for Reliable High-Speed Networks in Harsh Environments

Overview:

 The Outdoor CAT6 U/UTP BC Waterproof PVC Cable is a robust Ethernet cable designed for outdoor and harsh environment applications, offering reliable high-speed data transmission. It supports Gigabit Ethernet (1GbE) speeds over distances of up to 100 meters, making it ideal for outdoor networking, industrial sites, and environments exposed to moisture, UV rays, and temperature fluctuations. The cable is constructed with 23AWG Bare Copper (BC) conductors, ensuring superior conductivity, durability, and signal integrity. Its Unshielded Twisted Pair (UTP) design reduces crosstalk and electromagnetic interference (EMI), while the waterproof PVC jacket provides excellent protection against water, UV radiation, and physical damage. This cable is perfect for users seeking a high-quality, reliable solution for outdoor high-speed internet and network connectivity, with the added assurance of Fluke Test Passed.

 Key Features of Outdoor CAT6 UTP BC Waterproof PVC Cable:

• 23AWG Bare Copper (BC) Conductor
  The cable features 23 American Wire Gauge (AWG) solid bare copper conductors, providing excellent conductivity, durability, and performance. The bare copper ensures optimal signal integrity and supports high-speed data transmission.
• 250 MHz Bandwidth
  With a bandwidth of 250 MHz, the cable supports high-speed data transmission, making it suitable for Gigabit Ethernet (1GbE) networks and other bandwidth-intensive applications.
• Unshielded Twisted Pair (U/UTP) Design
  The U/UTP construction reduces crosstalk and electromagnetic interference (EMI), ensuring stable and reliable data transmission in most environments.
• Waterproof PVC Jacket
  The cable is sheathed in a durable waterproof PVC jacket, providing excellent protection against water, UV radiation, and physical damage. It is designed for outdoor use in harsh environments.
• Fluke Test passed
  The cable is rigorously tested to pass Fluke tests, ensuring compliance with industry standards for performance and reliability. This certification guarantees that the cable meets the highest benchmarks for Cat6 performance.

Specifications:

• Conductor: 23AWG 1/0.565 BC (Bare Copper)
• Shielding: UTP (Unshielded Twisted Pair)
• Outer Diameter (OD): 6.5mm
• Jacket Material: Waterproof PVC
• Jacket Color: Black (other colors available upon request)
• Indoor/Outdoor: Outdoor
• Bandwidth: 250 MHz
• Compliance: TIA/EIA-568-C.2
• Package: wooden spool
• Length: 305m
• Installation Temperature: -20°C to +60°C
• Operation Temperature: -40°C to +75°C
• Installation Min Bend Radius: 80mm
• Operating Min Bend Radius: 50mm

1. What’s the difference between Cat5e, Cat6, Cat6a, and Cat7?

Answer:

• Cat5e: Supports 1 Gbps at 100 MHz, ideal for basic office/home networks.

• Cat6: Handles 1 Gbps (up to 10 Gbps at 55m), with 250 MHz bandwidth and reduced crosstalk.

• Cat6a: Guarantees 10 Gbps at 500 MHz over 100m, with thicker insulation for better noise resistance.

• Cat7: Supports 10 Gbps at 600–1000 MHz, uses shielded (S/FTP) construction for extreme EMI protection.

(Key factors: Speed, bandwidth, distance, and shielding.)

2. Is Cat6 backward compatible with Cat5e?

Answer:
Yes, Cat6 works with Cat5e devices, but the network will run at the lowest category’s performance (e.g., 1 Gbps if mixed with Cat5e).

3. What’s the max distance for 10G speed on Cat6?

Answer:
Cat6 supports 10 Gbps up to 55 meters (180 ft). For 100m (328 ft), use Cat6a.

4. Does Cat6 support Power over Ethernet (PoE)?

Answer:
Yes, Cat6 supports PoE (802.3af, 15.4W), PoE+ (802.3at, 30W), and PoE++ (802.3bt, 60W/100W) for high-power devices like cameras and LED lighting.

5. Is Cat6 shielded or unshielded?

Answer:
Cat6 comes in both U/UTP (unshielded) and F/UTP. SF/UTP (shielded) versions. Shielded cables (e.g., F/UTP) are better for high-interference environments.

6. What’s the bandwidth of Cat6 vs. Cat6a?

Answer:

• Cat6: 250 MHz

• Cat6a: 500 MHz (double the bandwidth for stable 10G performance).

7. Can Cat6 be used for outdoor installations?

Answer:
Yes, but only with outdoor-rated Cat6 cables (UV-resistant, waterproof jackets). Standard indoor Cat6 degrades in sunlight/moisture.

8. What AWG is standard for Cat6 cables?

Answer:
Most Cat6 uses 23 AWG (thicker than Cat5e’s 24 AWG), improving signal integrity and PoE efficiency.

9. How long does Cat6 cable last?

Answer:
10–15 years if properly installed and undisturbed. Lifespan shortens with extreme bends, heat, or moisture exposure.

10. Is Cat6 worth the extra cost over Cat5e?

Answer:
Yes, if you need:

• 10G speeds (even at short distances).

• Future-proofing for IoT, smart buildings, or high-bandwidth applications.

• Better PoE support for high-wattage devices.

11. What’s the bend radius for Cat6?

Answer:
Minimum 4x cable diameter (e.g., ~1 inch for typical Cat6). Sharp bends cause crosstalk or breaks.

12. Can Cat6 transmit 4K video signals?

Answer:
Yes, via HDMI over Ethernet extenders or IP cameras. For long-distance 4K/8K, Cat6a or higher is recommended.

13. What certifications should quality Cat6 have?

Answer:
Look for:

• UL/ETL listed (safety compliance).

• TIA/EIA-568-C.2 or ISO/IEC 11801 (performance standards).

• CMR (riser-rated) or CMP (plenum-rated) for fire safety.

14. Does Cat6 reduce latency for gaming/streaming?

Answer:
Marginally. Cat6’s better signal integrity may reduce latency vs. Cat5e, but fiber optics or Cat6a are superior for ultra-low-latency needs.

15. What’s the price difference between Cat6 and Cat6a?

Answer:
Cat6a costs ~30–50% more than Cat6 due to heavier shielding and thicker construction. Bulk pricing narrows the gap.

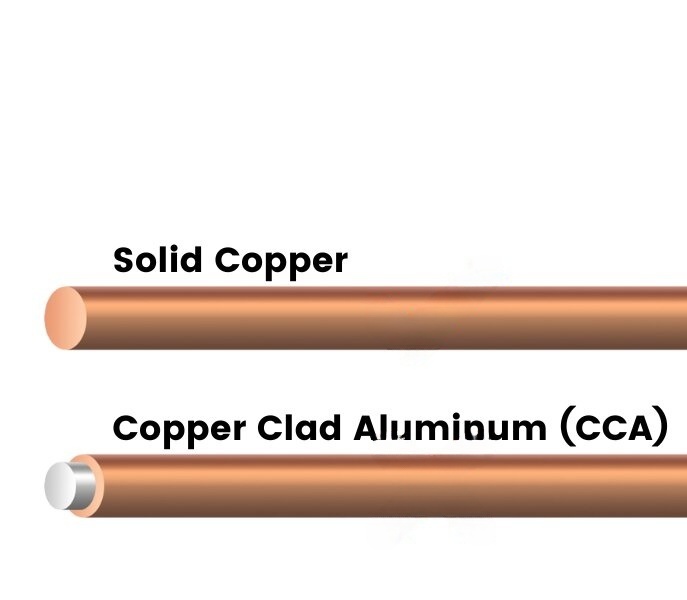

16. What’s the difference between CCA and BC conductors in Cat6 cables?
Answer:

• BC (Bare Copper): Pure copper, better for PoE and long-term use, compliant with standards.

• CCA (Copper-Clad Aluminum): Aluminum core with copper coating, cheaper but higher resistance, not recommended for PoE.

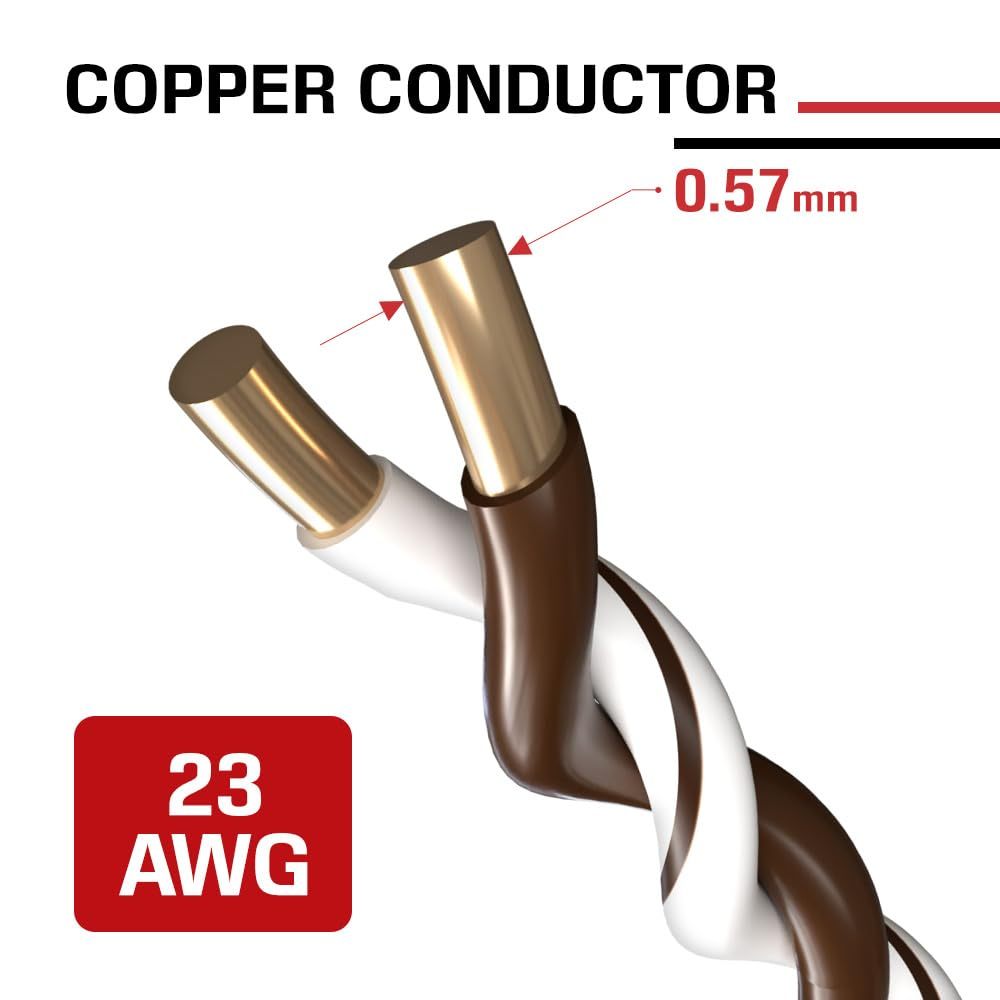

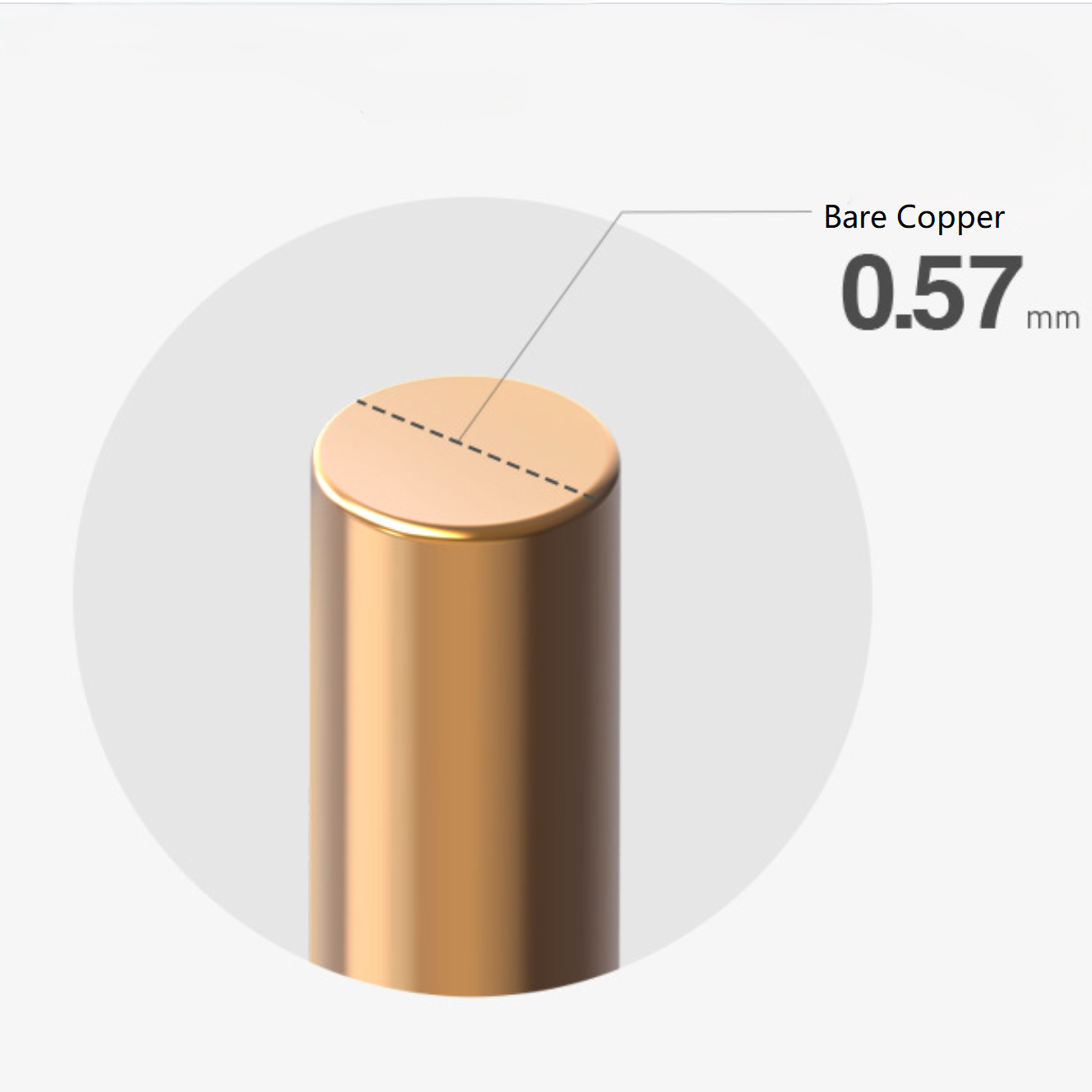

17. Is 0.565mm or 0.57mm copper conductor standard for Cat6?
Answer:

• Standard: 0.57mm (23 AWG) per TIA/EIA/ISO standards.

• 0.565mm: Tolerance variation; may not meet certifications. Always verify compliance.

How to Choose the Right Cat6 Cable for Your Project?

Cat6 cables may look similar externally, but their internal materials and specifications significantly impact performance, certification, and cost.Chinese suppliers operate on similar profit margins. This cable is fully automated, price differences depend solely on raw materials and specifications.

Below are key factors to consider when selecting the right cable for your needs.

1. Which Cat6 FlukeTesting Standard Do You Need? 100m Channel or 90m Permanent Link?

• 90m Permanent Link: Uses standard 23AWG (0.57mm diameter copper wire), stricter requirements, ideal for professional installations where performance and reliability are critical.

• 100m Channel: Uses cost-effective 23AWG (0.52-0.55mm diameter copper wire), suitable for general-purpose applications where budget is a priority.

🟡 Recommendation:

• Cost Ranking: 100m Channel < 90m Permanent Link

• Market Preference: 90m Permanent Link is preferred for professional installations, while 100m Channel is common for residential or light commercial use.

2. Which Conductor Material Do You Prefer?

• CCS (Copper-Clad Steel): Budget-friendly with decent performance, suitable for short-distance or low-bandwidth applications.

• BC (Bare Copper): Premium choice for superior conductivity and signal integrity, ideal for high-performance networks and long-distance runs.

🟡 Recommendation:

• Cost Ranking: CCS < BC

• Market Preference: BC is preferred for professional networks, while CCS is common in budget-conscious projects.

3. Which Shielding Type Do You Need?

• U/UTP (Unshielded Twisted Pair): No shielding, lightweight, and cost-effective, suitable for environments with minimal EMI.

• F/UTP (Foil Shielded): Foil shielding around all pairs for better EMI protection, ideal for offices or industrial areas.

• SF/UTP (Braided & Foil Shielded): Maximum EMI protection, best for high-interference environments like data centers.

🟡 Recommendation:

• Cost Ranking: U/UTP < F/UTP < SF/UTP

• Market Preference: U/UTP is most common for residential use, while F/UTP and SF/UTP are preferred in commercial/industrial applications.

4. Which Outer Jacket Material Do You Need?

• ROHS PVC: Standard option, environmentally compliant for general indoor use.

• CMX (Outdoor Rated): Lowest fire-rating.

• CM (General Purpose): Basic fire resistance for residential/office horizontal runs (common in US).

• CMR (Riser Rated): Fire-resistant for vertical building runs between floors (US standard).

• LSZH (Low Smoke Zero Halogen): Highest safety standard, minimal smoke/toxic fumes when burned, required in public spaces.

• CMP (Plenum Rated): Highest fire resistance for air-handling spaces (rare, expensive, US requirement).

🟡 Recommendation:

• Cost Ranking: ROHS PVC < CMX < CM < CMR < LSZH < CMP

• Market Preference: ROHS PVC and LSZH are most common globally; CM/CMR/CMP are primarily used in the US market.

Why Choose Us?

• Fluke Test Certified: All our Cat6 cables pass rigorous Fluke testing to ensure compliance with industry standards.

• Premium Quality: We use high-quality materials to guarantee optimal performance for your network.

• Global Standards: Our products meet UL, RoHS, and international safety requirements.

Performance Assurance:
✓ Verified to exceed TIA/EIA-568-C.2 Cat6 specifications
✓ Supports 10Gbps speeds up to 55m
✓ Low crosstalk and signal loss

Final Step: Get Your Custom Solution

To receive the best Cat6 cable recommendation:

1. Specify your requirements for testing standard, conductor, shielding, and jacket, OR

2. Provide your target budget, and we'll suggest the optimal configuration.

Contact us today for your high-performance Cat6 cable solution!

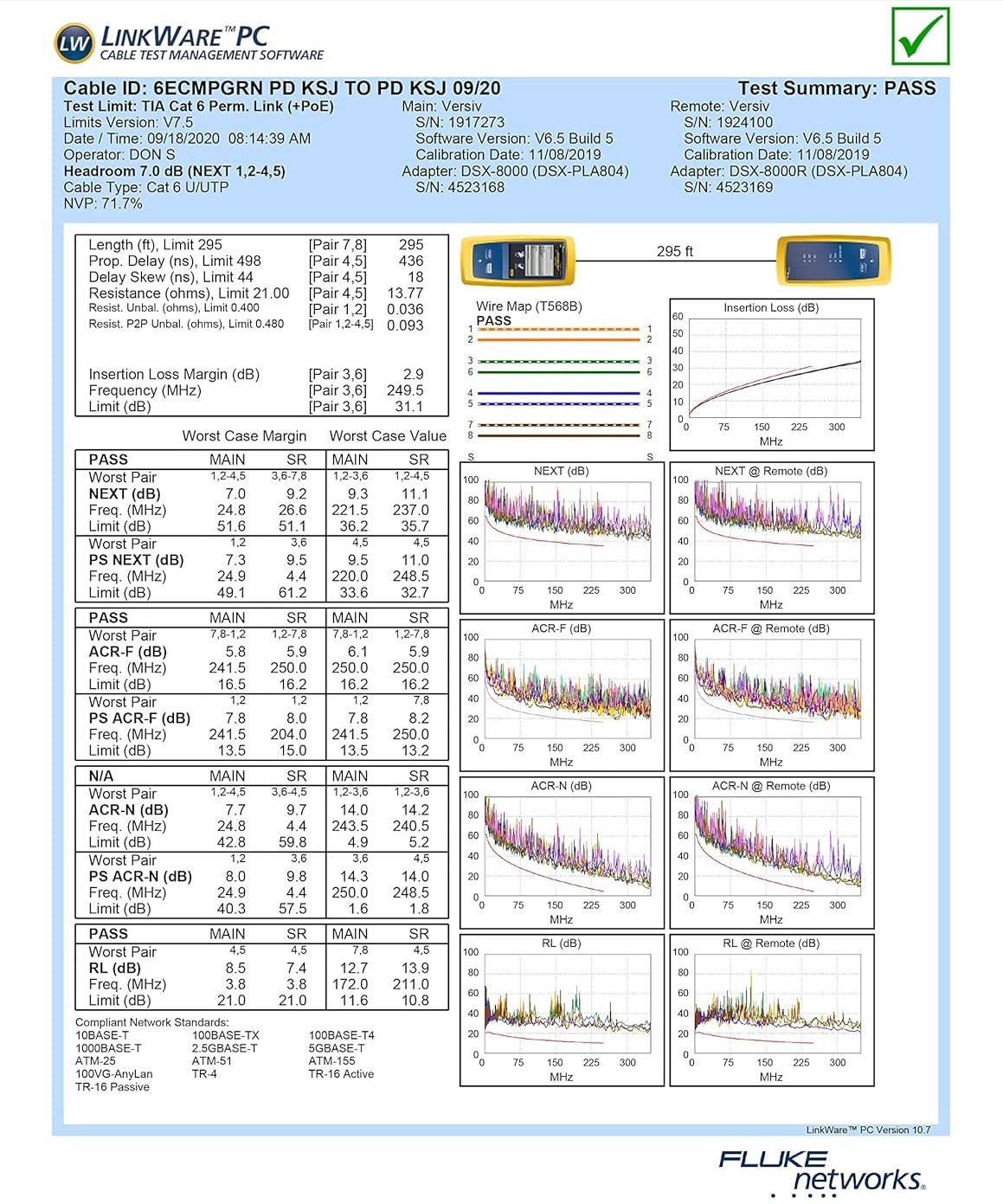

Fluke Network Cable Testing: Permanent Link (90m) vs. Channel (100m) – Which Standard is Stricter?

In structured cabling certification, Fluke Networks testing devices (e.g., DSX series) evaluate both Permanent Link (90m) and Channel (100m) according to standards like TIA/EIA-568 or ISO/IEC 11801.

1. Key Differences

• Permanent Link (90m)

  • Tests only the fixed infrastructure (patch panel → horizontal cable → outlet).

  • More stringent limits for parameters (e.g., Insertion Loss, NEXT, Return Loss).

  • Ensures the installed cabling can support additional patch cords while maintaining performance.

• Channel (100m)

  • Tests the end-to-end path, including patch cords (equipment → patch panel → outlet → device).

  • Looser limits because patch cords introduce extra loss and crosstalk.

  • Represents real-world usage but tolerates more signal degradation.

2. Why is Permanent Link (90m) Stricter?

• The performance margins are tighter to ensure that even after adding patch cords (up to 100m total), the link still passes Channel standards.

• Example (Cat6):

  Parameter	Permanent Link (90m)	Channel (100m)
  Insertion Loss	Lower (stricter)	Higher
  NEXT (Near-End Crosstalk)	Higher dB (stricter)	Lower dB
  Return Loss	Stricter	More lenient

• Fluke Test Modes:

  • Selecting "Permanent Link" applies stricter thresholds.

  • "Channel" mode allows more tolerance for patch cord variations.

3. Practical Implications

• Installation & Certification:

  • Permanent Link (90m) is tested first to verify the installed cabling meets high standards.

  • Channel (100m) is optional, used to validate real-world performance (including patch cords).

• Common Scenario:

  • A link may pass Permanent Link but fail Channel if patch cords are low quality.

4. Conclusion

• Permanent Link (90m) has stricter requirements than Channel (100m).

• Reason: The fixed infrastructure must compensate for potential signal degradation from patch cords.

1. What is your MOQ (Minimum Order Quantity)?

A: Standard MOQ is 100 spool/Carton ,per model ,we accept smaller trial orde for new buyers

2. What is the lead time for bulk orders?

A: 25-30 days after payment confirmation (depending on order size and customization).

3. Do you offer free samples?

A: Free samples are available for bulk-order buyers, but shipping costs are charged.

4. What are your payment terms?

A: T/T (30% deposit, 70% before shipment).

5. What is your packaging option?

A: UTP is packed by giftbox ,FTP and SFTP is wooden spool .because cable is heavier

6. Which shipping methods do you support?

A: By sea (FCL/LCL), air freight, or express (DHL/FedEx/UPS) for urgent orders.

7. Do you provide warranty?

A: Yes, we provide replacement for defective products.

8. Can you ship to my country?

A: We ship globally and handle customs documentation (INCOTERMS: FOB, CIF, or EXW).

9. Do you provide OEM/ODM services?

A: Yes, we offer custom branding, packaging, and cable specifications (length, connectors, etc.) for bulk orders.

10. How can I request a quote?

A: Email us with your specifications (length, quantity, packaging, etc.) for a detailed quotation.

Ready to discuss your order? Contact us with your requirements for a tailored solution!
