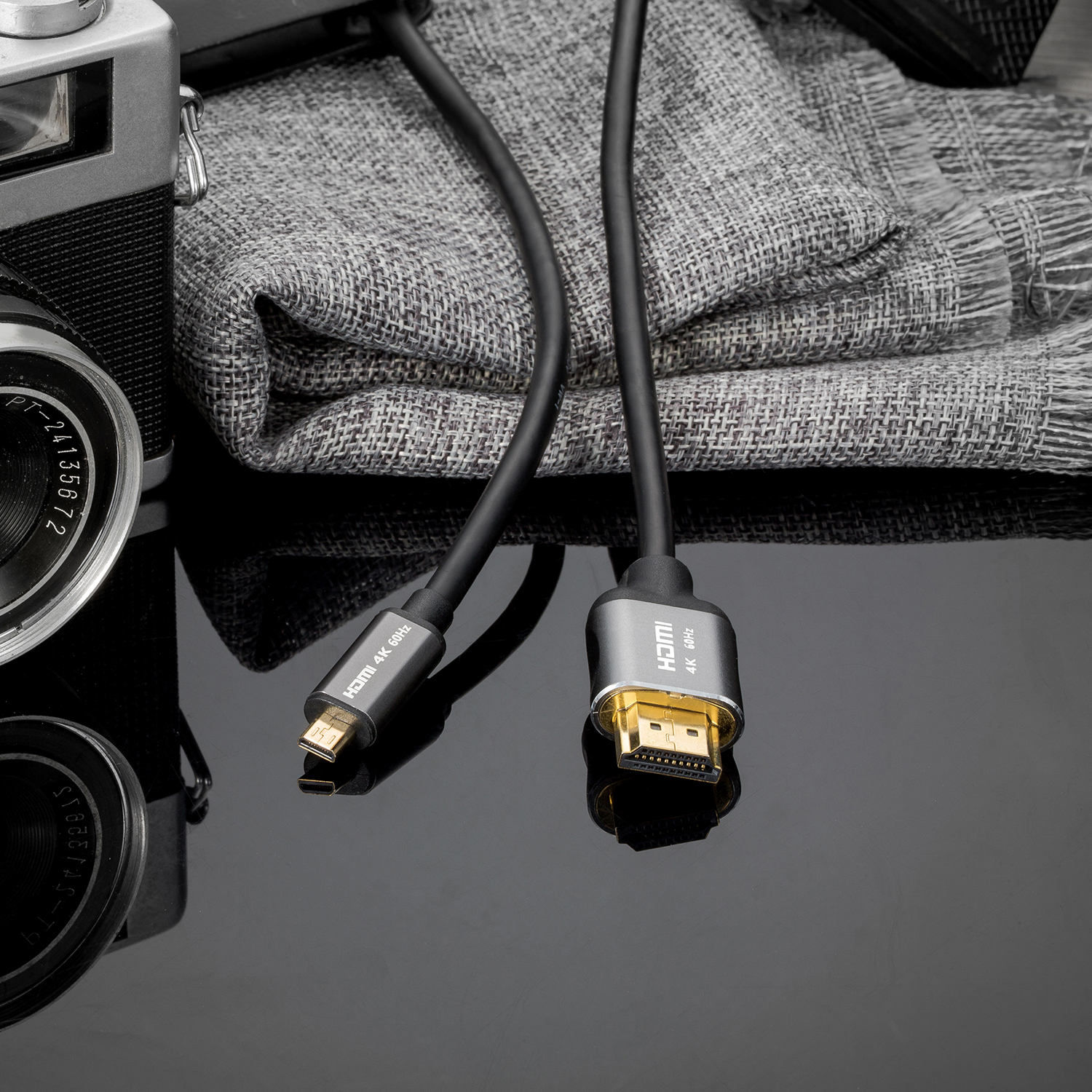

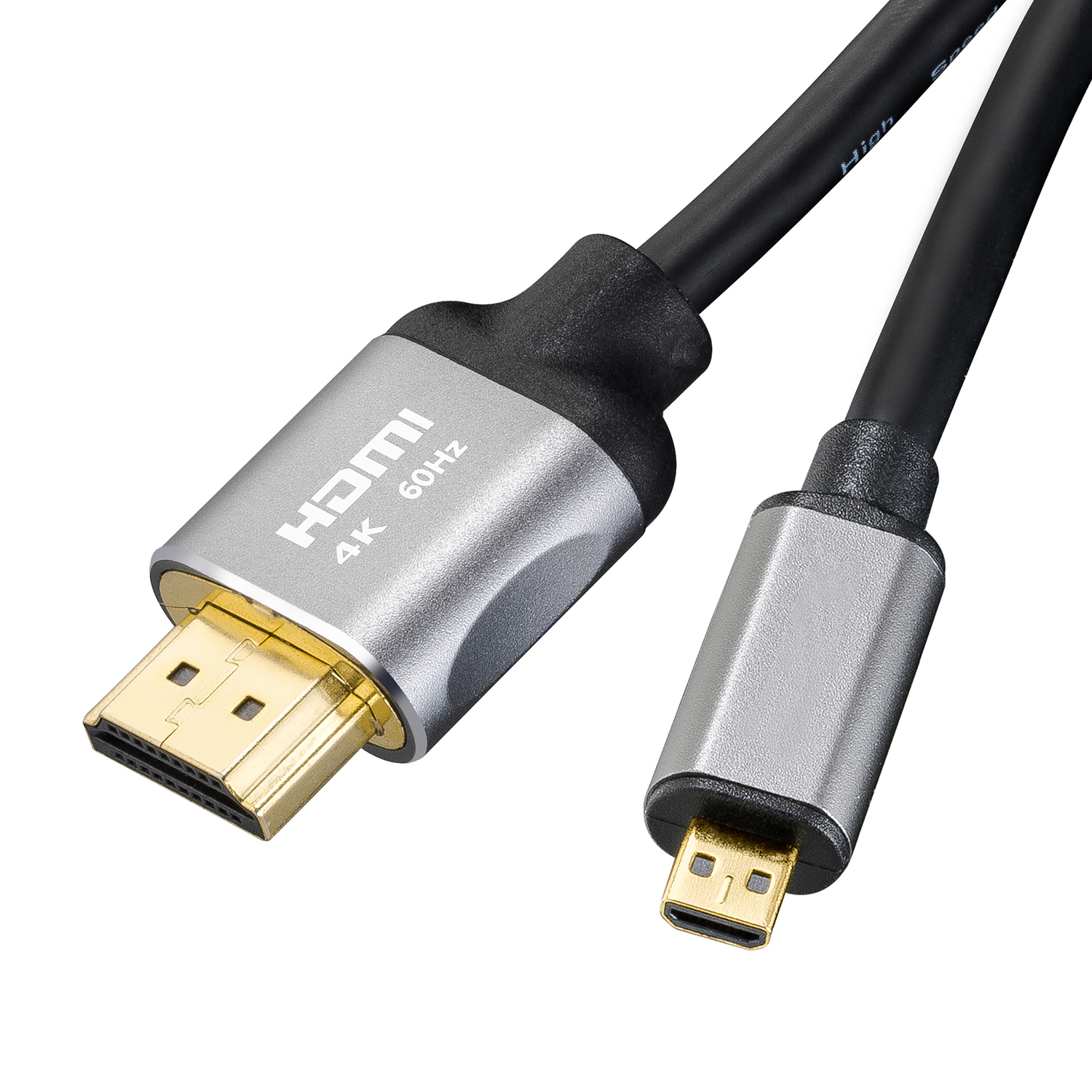

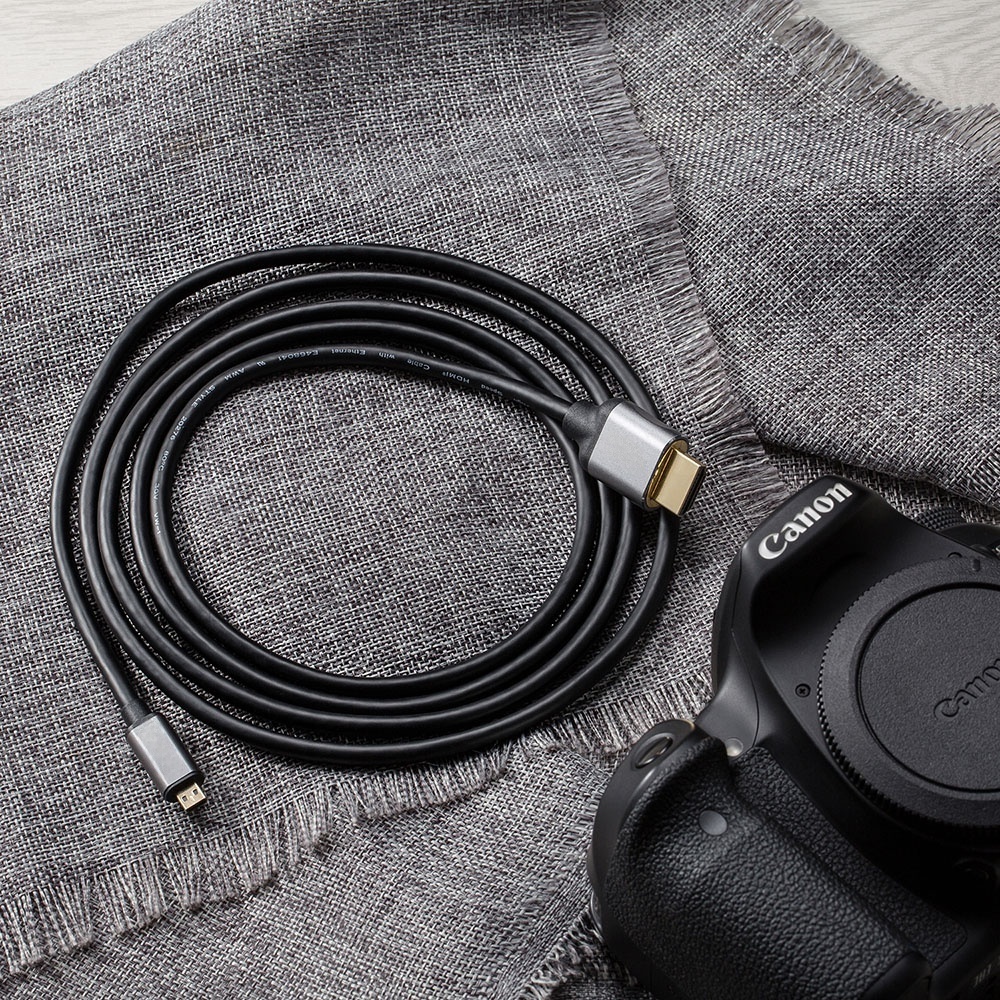

HDMI 2.0 Cable, HDMI to Micro HDMI with Aluminum Shell - Ultra HD 4K@60Hz, 18Gbps Bandwidth, Slim Design (OD4.8mm) for Cameras, Laptops, and Portable Devices

Overview:

The HDMI 2.0 Cable, HDMI to Micro HDMI with Aluminum Shell is a high-performance cable designed for modern home theaters, gaming setups, and professional AV systems. Supporting 4K@60Hz resolution with an 18Gbps bandwidth, this cable ensures flawless transmission of ultra-high-definition video and audio. The aluminum shell connector offers superior durability and corrosion resistance, while the slim design (OD4.8mm) provides enhanced flexibility and ease of installation. The Micro HDMI connector is compact and lightweight, making it ideal for connecting to cameras, laptops, and other portable devices. Whether you're gaming, streaming, or setting up a professional AV system, this HDMI 2.0 to Micro HDMI cable delivers unmatched performance and reliability.

Key Features:

• HDMI 2.0 Support:Supports 4K@60Hz resolution with an 18Gbps bandwidth, ensuring seamless transmission of high-quality audio and video signals.
• Aluminum Shell Connector:The aluminum shell connector provides enhanced durability and corrosion resistance, ensuring long-lasting performance even with frequent use.
• Slim Design (OD4.8mm):The ultra-slim cable design allows for easy installation and flexibility, making it ideal for tight spaces and complex setups.
• Micro HDMI Connector:The Micro HDMI connector is compact and lightweight, designed for easy connection to cameras, laptops, and portable devices, making it perfect for on-the-go use.

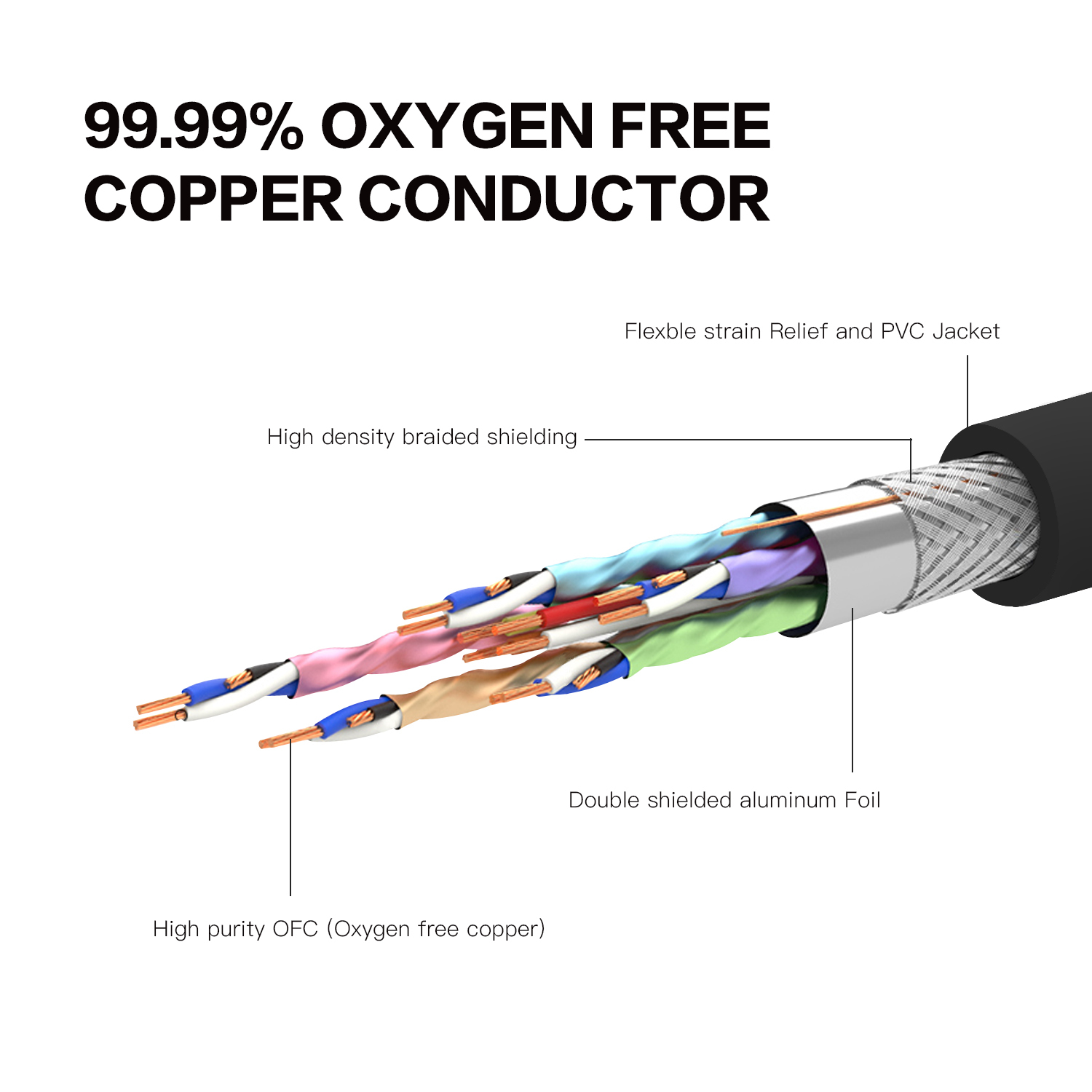

• OFC Conductor:The Oxygen-Free Copper (OFC) conductor ensures better signal transmission with minimal loss, delivering the highest quality audio and video performance.
• HDR and ARC Support:Supports HDR10  for richer colors and deeper contrasts, and Audio Return Channel (ARC) for high-quality audio transmission.
• Backward Compatible:Fully compatible with previous HDMI versions (1.4, etc.), ensuring seamless integration with older devices.

Specifications:

• HDMI version:HDMI 2.0
• Connector Type:HDMI A male to Micro HDMI male (Aluminum Shell)
• Conductor:OFC Conductor
• Cable Length:1m, 2m
• AWG:34AWG (7/0.06 Tinned copper )
• Shielding:Triple-layer shielding (braided, foil, and aluminum)
• Cable diameter:OD4.8mm (Slim Design)
• Bandwidth:18Gbps
• Resolution Support:4K@60Hz, 1080p@120Hz
• HDR Support:Yes (HDR10)
• ARC Support:Yes
• Other support:HDCP2.2
• Cable Material:PVC Jacket
• Connector Material:Aluminum Shell
• Color:Black (other colors available upon request)
• Operating Temperature:-20°C to +70°C

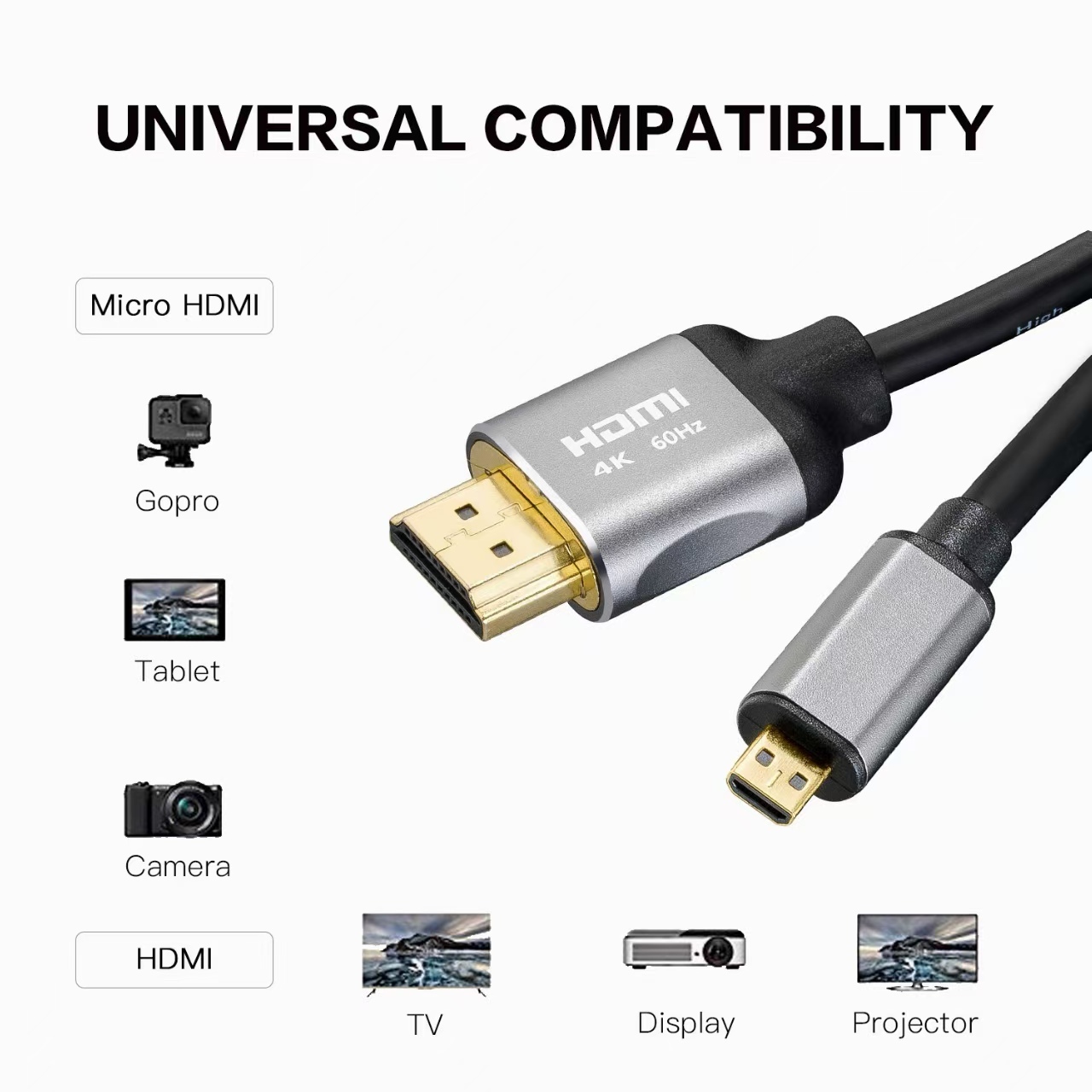

Applications:

• Cameras and Camcorders:Perfect for connecting DSLR cameras, camcorders, and other portable devices to TVs or monitors for high-quality video playback.
• Laptops and Tablets:Ideal for connecting laptops and tablets to external displays or projectors for presentations or entertainment.
• Home Theater Systems:Suitable for connecting 4K TVs, soundbars, and AV receivers for an immersive cinematic experience.
• Gaming Consoles:Great for gaming consoles like PlayStation 4 and Xbox One, delivering high refresh rates and low latency.
• Professional AV Setups:Suitable for high-end AV systems in conference rooms, studios, and live events.

What is the Difference Between HDMI to Mini HDMI and HDMI to HDMI?

• HDMI to HDMI:This is the standard HDMI cable used to connect devices like TVs, gaming consoles, and Blu-ray players to displays or receivers. It features a standard HDMI connector on both ends.
• HDMI to Mini HDMI:This cable is designed for devices with a Mini HDMI port, such as cameras, camcorders, and some laptops. The Mini HDMI connector is smaller and more compact, making it ideal for portable devices. It allows you to connect these devices to standard HDMI displays or projectors.

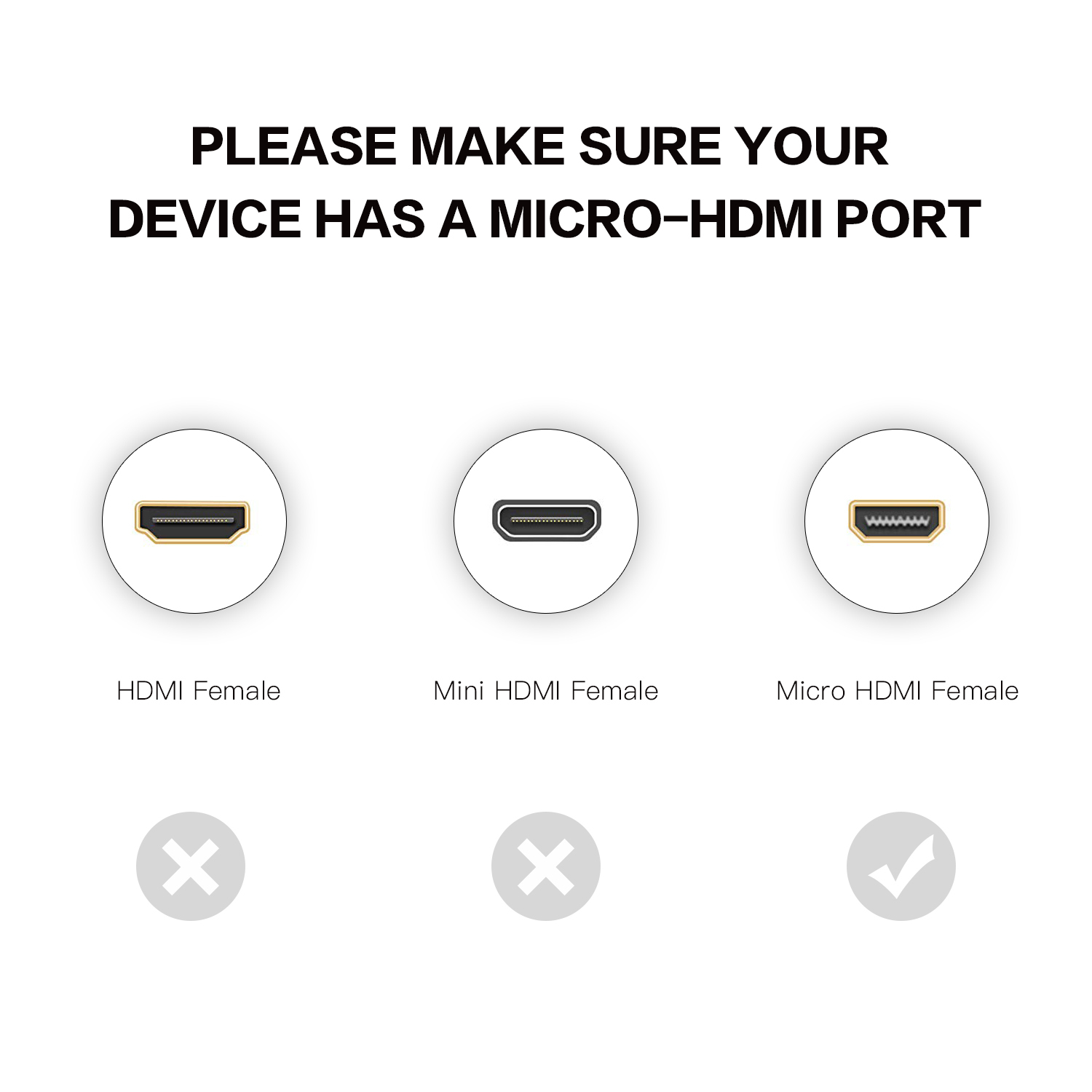

What is the Difference Between HDMI to Mini HDMI and HDMI to Micro HDMI?

• HDMI to Mini HDMI:This cable is designed for devices with a Mini HDMI port, such as cameras, camcorders, and some laptops. The Mini HDMI connector is smaller than the standard HDMI connector but larger than the Micro HDMI connector.
• HDMI to Micro HDMI:This cable is designed for devices with a Micro HDMI port, such as some cameras, tablets, and smartphones. The Micro HDMI connector is the smallest of the three, making it ideal for ultra-portable devices. It allows you to connect these devices to standard HDMI displays or projectors.

1. What is the difference between HDMI to HDMI, HDMI to mini HDMI, and HDMI to micro HDMI, and their applications?
Answer:

• HDMI to HDMI (Type A to Type A): Standard connection for TVs, monitors, AV receivers

• HDMI to Mini HDMI (Type A to Type C): For connecting cameras, tablets, or small devices to standard displays

• HDMI to Micro HDMI (Type A to Type D): For smartphones or ultra-compact devices
  All support identical HDMI 2.0 specifications, differing only in connector size.

2. What AWG is used for this HDMI to Micro HDMI cable?
Answer:
We use 34AWG tinned stranded copper conductors for optimal flexibility and signal integrity in compact cables.

3. Are these cables directional?
Answer:
No, standard passive HDMI 2.0 to Mini HDMI cables are not directional. They can be connected in either orientation.

4. What is the maximum resolution supported?
Answer:
Supports up to 4K@60Hz (3840×2160) with HDR, matching full HDMI 2.0 specifications.

5. What is the maximum reliable length of this HDMI to Mini HDMI cable?
Answer:
Standard reliable lengths are 1M and 2M for full 4K@60Hz 4:4:4 performance.

6. Does this cable support 3D video passthrough?
Answer:
Yes, fully supports 3D formats including 1080p@60Hz per eye (Frame Packing).

7. What is the bandwidth capability?
Answer:
Supports 18Gbps bandwidth, sufficient for 4K@60Hz 4:4:4 chroma sampling and HDR10.

8. What connector types are on each end?
Answer:

• Source end: Standard HDMI Type A (19-pin)

• Device end: Micro HDMI Type C

9. What conductor materials are used?
Answer:
34AWG tinned stranded copper conductors with 1μm gold-plated contacts (standard).

10. Does this cable support ARC (Audio Return Channel)?
Answer:
Yes, supports standard ARC (not eARC) for audio transmission from TV to sound systems.

11. Is HDCP 2.2 supported?
Answer:
Yes, fully supports HDCP 2.2 copy protection for 4K content.

12. What is the outer jacket material and diameter?
Answer:
PVC jacket with OD 4.8mm - optimized for flexibility in compact applications.

13. Are these cables certified?
Answer:
HDMI to Mini HDMI cables are not officially certified due to Mini HDMI connector limitations, but comply with HDMI 2.0 electrical specifications.

14. What types of HDR are supported?
Answer:
Supports HDR10 and HLG. Compatible with Dolby Vision/HDR10+ if supported by connected devices.

15. Can this cable carry Dolby Atmos audio?
Answer:
Yes, in compressed format via ARC. Lossless Atmos requires HDMI 2.1/eARC.

Order Quantity and Samples

1. What is your MOQ (Minimum Order Quantity)?
   Standard MOQ is 500 pcs per model, but we accept smaller trial orders for new buyers.

2. Do you offer free samples?
   Free samples are available for bulk-order buyers, but shipping costs are charged.

Order Processing and Lead Time

2. What is the lead time for bulk orders?
   25-30 days after payment confirmation (depending on order size and customization).

3. How can I request a quote?
   Email us with your specifications (length, quantity, packaging, etc.) for a detailed quotation.

Payment Terms

4. What are your payment terms?
   T/T (30% deposit, 70% before shipment).

Packaging and Shipping

5. What is your packaging option?
   Custom packaging (Polybag, blister, retail box, eco-friendly) is available.

6. Which shipping methods do you support?
   By sea (FCL/LCL), air freight, or express (DHL/FedEx/UPS) for urgent orders.

7. Can you ship to my country?
   We ship globally and handle customs documentation (INCOTERMS: FOB, CIF, or EXW).

Warranty and Services

7. Do you provide warranty?
   Yes, we provide replacement for defective products.

8. Do you provide OEM/ODM services?
   Yes, we offer custom branding, packaging, and cable specifications (length, connectors, etc.) for bulk orders.
