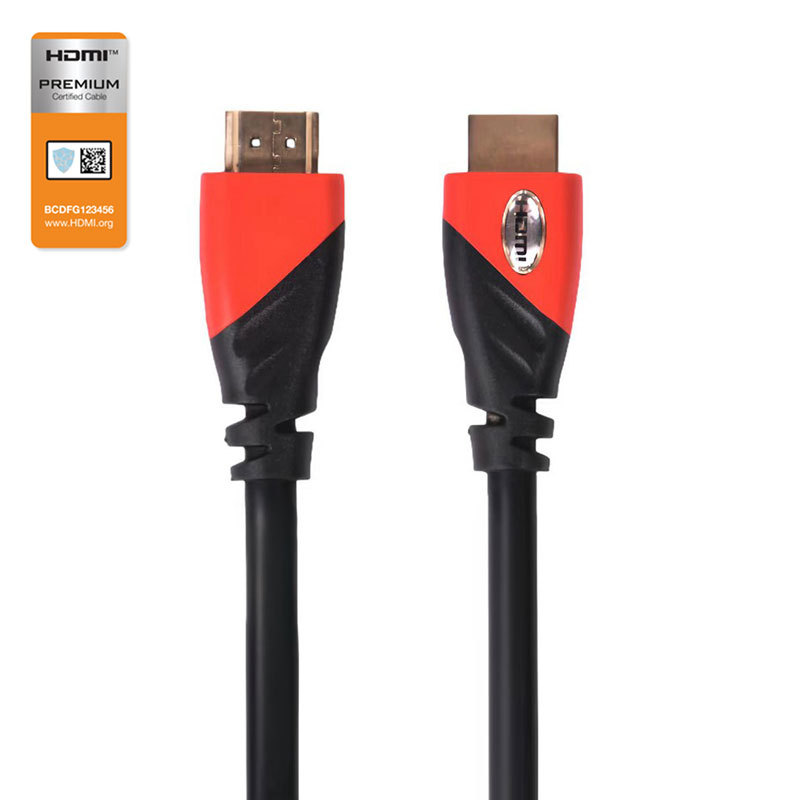

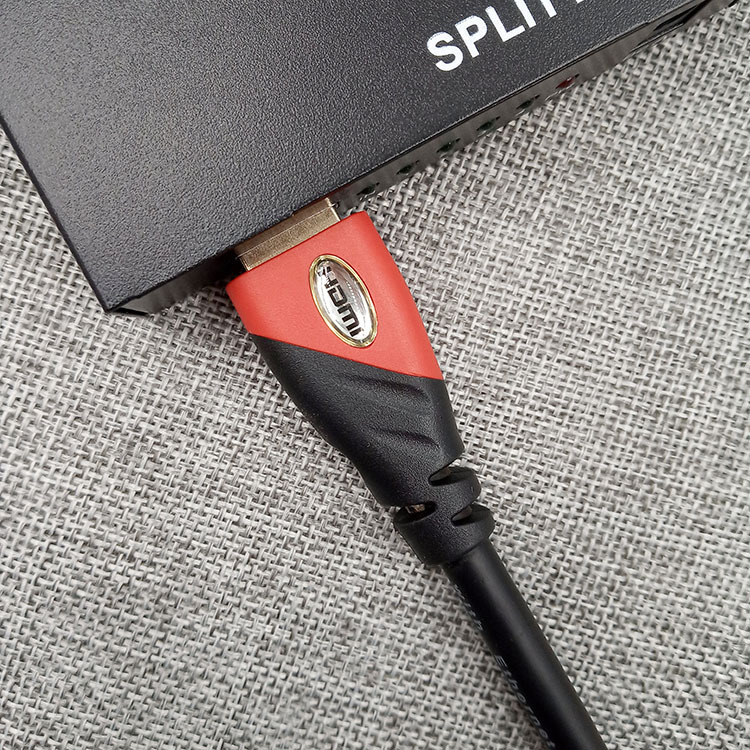

HDMI 2.0 Cable (Double Molding) 4k60hz

Item No.: HDDM1001
Description
Discriptions:

1.4K HDMI Cable 2.0HDMI cables support Ultra HD 4K(2160p), QHD 2K(1440P), HDCP 2.2, including Audio Return Channel(ARC), Dolby Atmos, Dolby TrueHD 7.1 audio and 3D vitural effect, enjoy full HD TV sound quality while experiencing deep colors and high-resolution images, provides you the visual experience of ultra high definition.
2.Ultra High Speed HDMI Cable with EthernetThis HDMI to HDMI cable transfers data to speeds of up to 18Gbps bandwidth, giving you a faster and smoother screen whether watching TV, gaming or working. The 2.0 HDMI cable transfers audio, video and photos at lightning speed without waiting for buffering. Plug and play, no pre-installed drivers required.

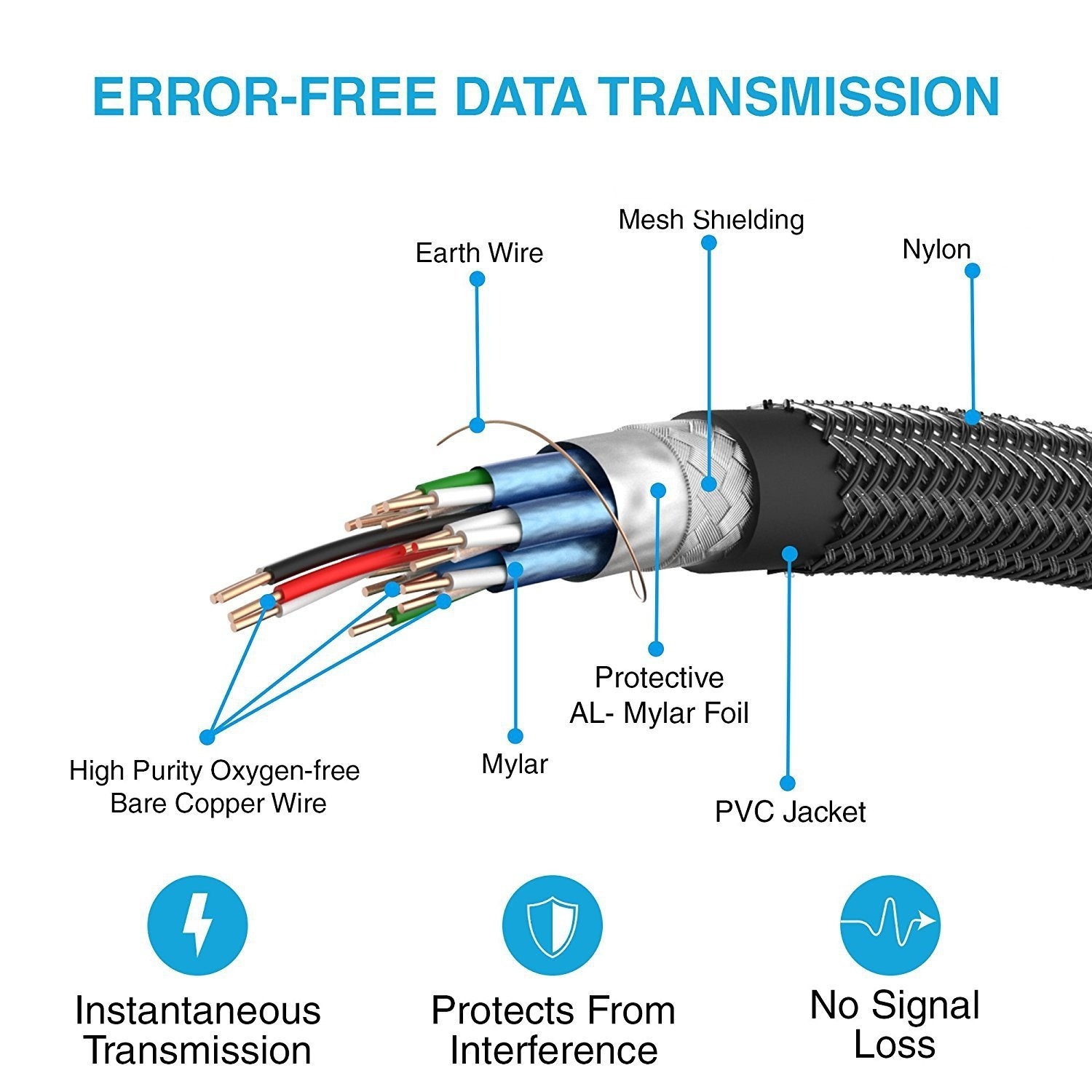

3.Reliable Signal TransmissionBare copper core wire with multiple shielding ensures efficient transmission with less data loss. Exclusive TMDS technology ensures EMI reduction, to keep stable signal transmission and minimize signal loss. Give you an immersive experience without interruption and support Mirror and Extended Mode for your different requirements.
4.Good Durability and FlexibilityFeatures an ultra-durable nylon-braided jacket with a bending test of 10000+ and high quality 24K gold plated connectors, and this HDMI cables can maintain a balance of toughness and flexibility without being too stiff.
5.Universal HDMI CableCompatible for all HDMI devices.Blu-ray players, PC, AV receiver, Apple TV, Roku streaming media player, PS5, PS4, Play Station, Xbox One, Ultra 4K TV(UHD TV), HDTV, laptop , Monitor, Projector and more.


Specification

Model Certified  high speed 4K HDMI Cable
Version HDMI2.0v( Backwards compatible with earlier version)
Conductor Material Bare copper
Conductor Size 30AWG or 28AWG (1-3M), 26AWG(5M) 24AWG(8-10M)
OD 30AWG(OD6.2mm) ,28AWG(OD7.3mm) 26AWG(OD8.0mm)  24AWG (OD9.0mm)
Wire 19+1
Connector type HDMI A  Male To A  Male
Plug Gold plated
UnShield/Shield Double shielded
Jacket PVC Jacket
Connector Double Molding type
Resolution 4K@60Hz /1080P
Bandwith 18Gbps
Resolution 3840X2160P
Function  HDR,HDCP2.2,Dolby atomos
Application Ultra HDTV, Projector ,set-top box ,Blue-ray,DVD, PS5/PS4
Package Giftbox ( Customied logo could be printed on the label of box)
Compatible The hdmi2.0 cable is compatible for your streaming devices ,Playstation 5(PS5),XBOX Series X,Apple TV 4K,Mackbook Pro 14/16(Apple NI Pro/Max),NVDIA SHIELD TV ,Fire TV, Roku Ultra TV ,Blue-ray players ,Microsoft XBOX 1,Nintendo Switch and other HDMI-enabled devices to your HDTV ,Monitors ,displayers or Projectors

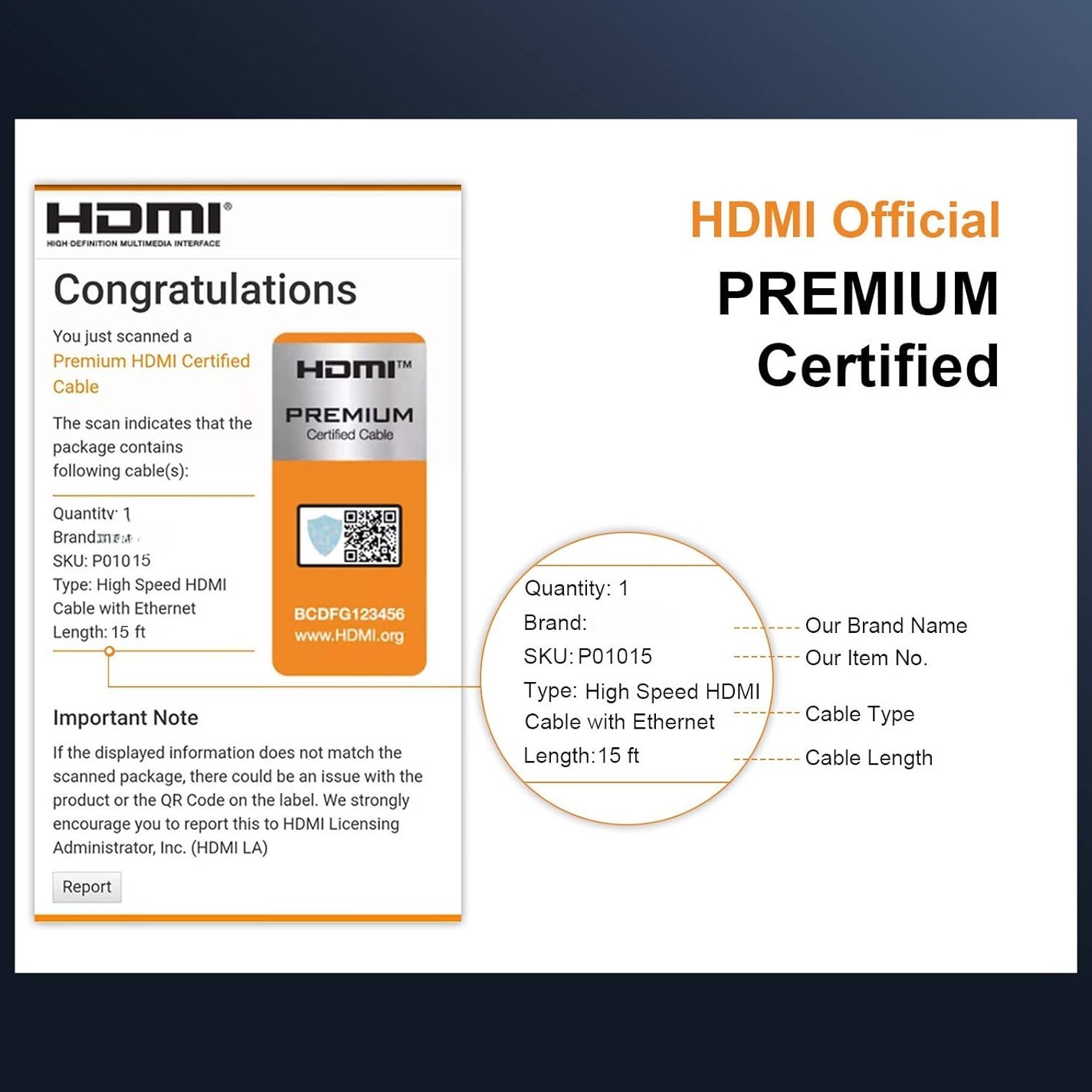

2.0V HDMI QR CODE Sticker Available lengths 1m ,2m ,3m ,5m


How to choose AWG Spec for different meters:

AWG Conductor Length Pass HDMI ATC Test Image testing (3480*2160 60hz) OD
32AWG BC 1-2M OK OK OD5.5mm
BC 3M NG
30AWG BC 1-3M OK OK OD6.0mm
BC 5M NG 4K/30hz
28AWG BC 1-3M OK OK OD7.3mm
BC 5-7.5M NG OK
BC 10M NG 1080P


The normal HDMI Cable over 7m will have singal loss ,only support 4k30hz This cable with active chipset (booster) can be a good solutions to support 4k@60hz 4:4:4 .

AWG Conductor Length Pass HDMI ATC Test Image testing (3480*2160 60hz) OD
No booster with Booster No booster with Booster
26AWG BC 5M OK   OK   OD8.0mm
BC 6M NG OK OK
BC 8M NG OK OK OK
BC 10M NG OK OK OK
BC 15M NG NG NG OK
24AWG BC 10M NG   OK   OD9.0mm
BC 15M NG OK OK
BC 20M NG NG NG OK
BC 25M NG NG NG 4K/30hz
BC 30M NG NG NG 1080P
Remark: if want Pass HDMI ATC Test ,For 10m 15m ,we recommend the HDMI Cable with booster.Exceed 15m ,we recommend the HDMI AOC Cable
