CL2 speaker cable BC

Item No.: SPU2002-BC
Description
Discriptions

1.[10/12/16/18/20 GAUGE SPEAKER WIRE ] - The lower the gauge number, the thicker the wire. Thicker wire presents less resistance to current flow.
2.[SOFT TOUCH JACKET] - The jacket on our cable is designed with the installer in mind. The flexibility of this jacket allows for easy routing and has a low memory.
3.[PVC JACKET] - Allows free, wide and seamless adjustment of the required physical properties of this wire such as flexibility, elasticity, and impact resistance.
4.[EASY POLARITY IDENTIFICATION ]- This two color jacket allows for easy polarity identification. Making a polarity mistake could be damaging to your audio equipment.

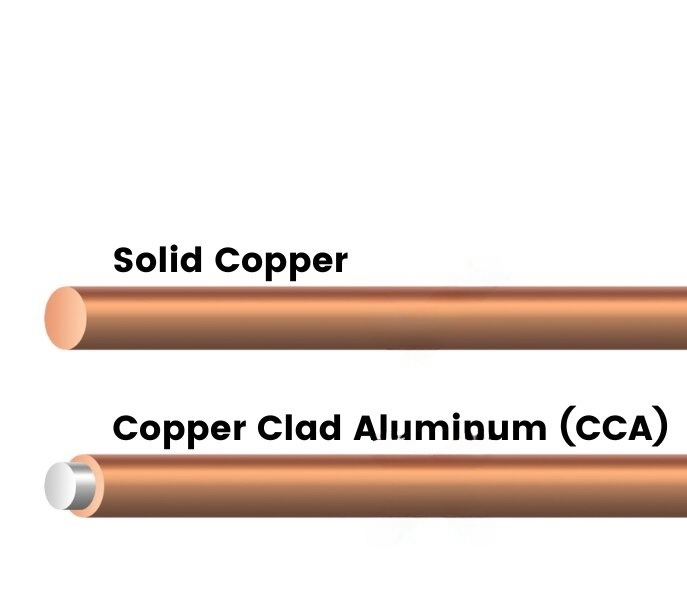

5.[Bare copper and CCA (Copper clad aluminum )] - Bare copper is quality one ,CCA wiring provides a good conductor for transmitting audio. and is  the  economical option .

Model Name

For US Market (Quality one)
Model AWG Conductor O.D/mm Length
SPU1001-BC-20 20AWG 20AWG (28/0.16BC+PVC)*2F OD2.2*2.2MM 100m
SPU1001-BC-18 18AWG 18AWG (42/0.16BC+PVC)*2F OD2.5*2.5MM 100m
SPU1001-BC-16 16AWG 16AWG (63/0.16BC+PVC)*2F OD3.0*3.0MM 100m
SPU1001-BC-14 14AWG       14AWG   (105/0.16BC+PVC)*2F OD3.5*3.5MM 100m



For US Market (Economic one)

Model AWG Conductor O.D/mm Length
SPU1001-CCA-20 20AWG 20AWG (28/0.16CCA+PVC)*2F OD2.2*2.2MM 100m
SPU1001-CCA-18 18AWG 18AWG (42/0.16CCA+PVC)*2F OD2.5*2.5MM 100m
SPU1001-CCA-16 16AWG 16AWG (63/0.16CCA+PVC)*2F OD3.0*3.0MM 100m
SPU1001-CCA-14 14AWG       14AWG   (105/0.16CCA+PVC)*2F OD3.5*3.5MM 100m



For Europe Market (Quality one)
Model AWG Conductor O.D/mm Length
SPU1001-BC-0.75 0.75mm² 0.75mm² speaker cable 24x0.2BC*2F OD2.5*2.5mm  100m
SPU1001-BC-1.5 1.5mm² 1.5mm² speaker cable 48x0.2BC*2/++PVC OD3.0*3.0mm OD3.0*3.0mm 100m
SPU1001-BC-2.5 2.5mm² 2.5mm² speaker cable 78x0.2BC*2/++PVC OD3.5*3.5mm D3.5*3.5mm 100m
SPU1001-BC-4.0 4.0mm² 4.0mm² speaker cable 126x0.2BC*2/++PVC OD4.5*4.5mm OD4.5*4.5mm 100m




For Europe Market (Economic one)
Model AWG Conductor O.D/mm Length
SPU1001-CCA-0.75 0.75mm² 0.75mm² speaker cable 24x0.2CCA *2F OD2.5*2.5mm  100m
SPU1001-CCA-1.5 1.5mm² 1.5mm² speaker cable 48x0.2CCA *2F OD3.0*3.0mm 100m
SPU1001-CCA-2.5 2.5mm² 2.5mm² speaker cable 78x0.2CCA *2F D3.5*3.5mm 100m
SPU1001-CCA-4.0 4.0mm² 4.0mm² speaker cable 126x0.2CCA *2F OD4.5*4.5mm 100m
