Discriptions
1.meet your daily charging needs. If you are traveling and visiting relatives and friends, you do not need to worry about charging, because you can charge anywhere with a three-pin socket.
2.The chargers have overcurrent protection, overvoltage protection, under-voltage protection, leakage protection, overheat protection and other protection measures.

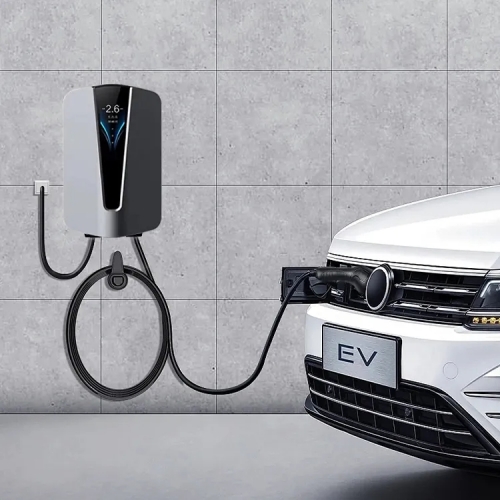

3.Sleek and Compact Design,The latest EV Charger offers a compact design while still including all the best safety technology and components.
4.the control circuitry protects your car against irregular grids and even lightning strikes, handing insufficient, excessive, and unstable frequency, voltage, and current as well as eliminating any overheating, improper grounding, or earth leakage.
5.The LED screen offers you complete charging status and lets you monitor power, current, voltage, temperature, and session length in real time; the ergonomic handle offers sure and comfortable grip at all times.
Products specification
Input voltage |
200-480V |
Rated Power |
7kW/11kW/22kW |
Rated frequency |
50/60Hz |
Protection rank |
IP54 |
Operating temperature |
-35℃ To 50 ℃ |
Storage humidity |
5%-95% RH |
Charging cable |
TPU(CE/TUV Certified) |
Control box size |
L180W95xH290(mm) |
Executive standard |
IEC62196 Type 2 |
Power supply |
1 phase:1P+N+PE/3 Phase: 3P+N+PE |
Function customization |
Blue-tooth/WIFI/APP(opt) |
RCD Protection |
Type B(30m A AC+6mA DC) |
Certificate |
CE ,Rohs ,UKCA |
LCD Display |
4.3''Color screen |
Charging wire length |
5m/8m/10m |
LED indicator |
(B/R/G) |
Start mode |
Card swipe |
Cable routing |
Bottom inlet wiring ,Bottom outlet wiring |
Installation method |
Wall-mount/Pole-mount |
Charging mode |
Automatic full power off/current regulation/fixed time |
Electrical protection |
Leakage protection ,Over voltage/Under-voltage protection.lightning protection ,Over current protection,Ground protection ,Over temp protection ,Surge protection |
Products features |
Brand new upgrade can be 22kW,Charging is faster and more convenient ,4.3''LCD larger screen ,real-time dynamic display ,exquisite high-end |
Model Name:
Model No |
Phase/Current |
Voltage |
Power |
Cable spec |
Certificate |
VCS-Q8-7S |
32A/1Phase |
250V |
7kW |
3x6.0mm2+2x0.5mm2 |
CE.Rohs ,UKCA |
VCS-Q8-11S |
16A/3Phase |
480V |
11kW |
5x2.5mm2+2x0.5mm2 |
CE.Rohs ,UKCA |
VCS-Q8-22S |
32A/3Phase |
480V |
22KW |
5x6.0mm2+2x0.5mm2 |
CE.Rohs ,UKCA |
