Discriptions :

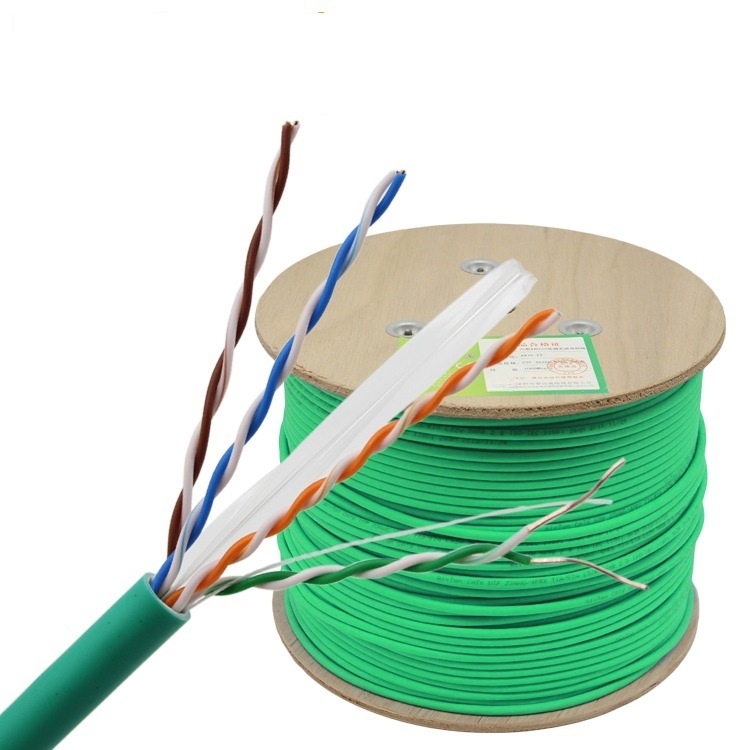

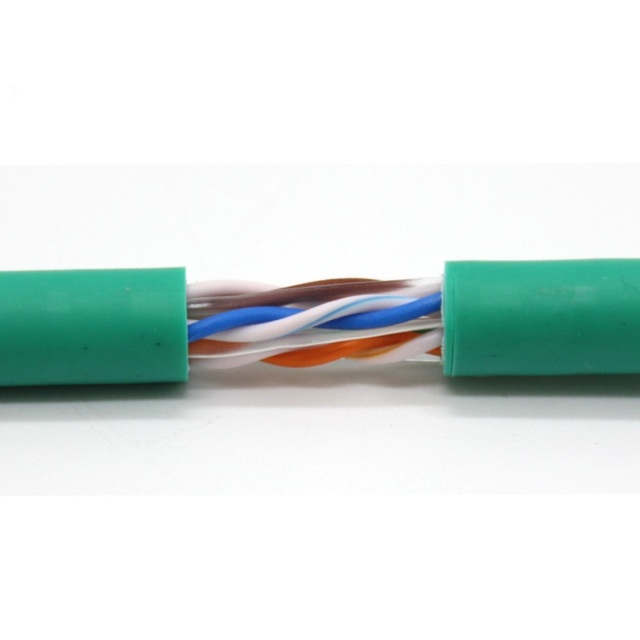

1.[HIGH PERFORMANCE NETWORK CABLE]. This cat 6 lan cable is 23 AWG with 4 pairs (8 conductors). HASSLE FREE PACKAGING. 1000 feet (305 meters) has been packaged in a tangle free, easy pull box.

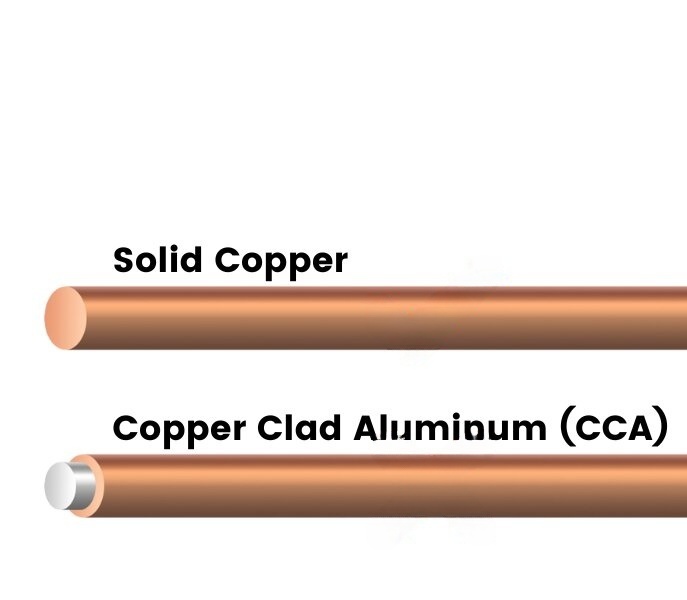

2.[SOLID BARE COPPER CONDUCTORS]. Pure bare copper produces a stronger signal along with better conductivity and flexibility when compared to copper clad aluminum (CCA).

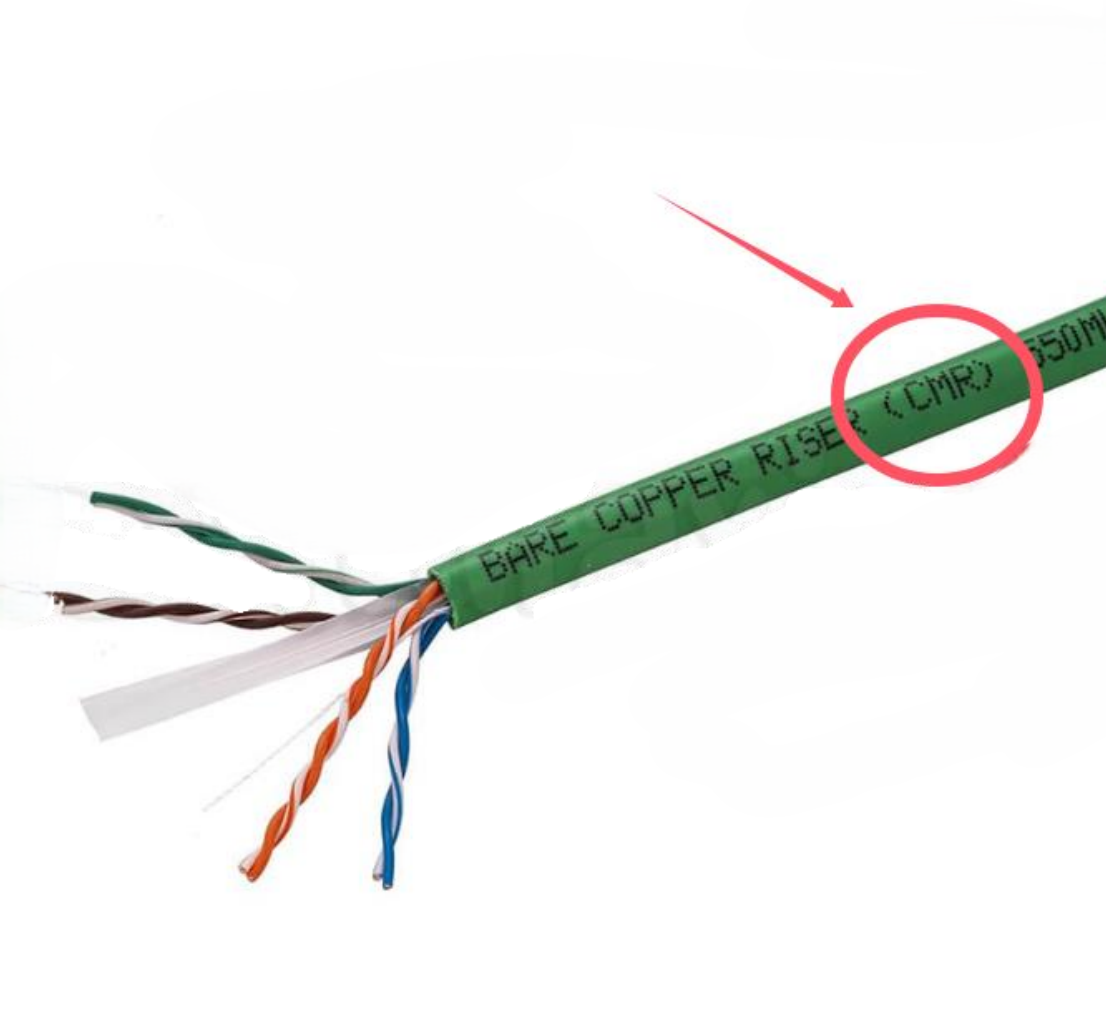

3.[FOR USE INDOORS]. The Green CMR rated jacket is for use in between floors, in wall, and non-plenum spaces. Help fires from spreading floor to floor in vertical installations with mild flame retardance.
4.

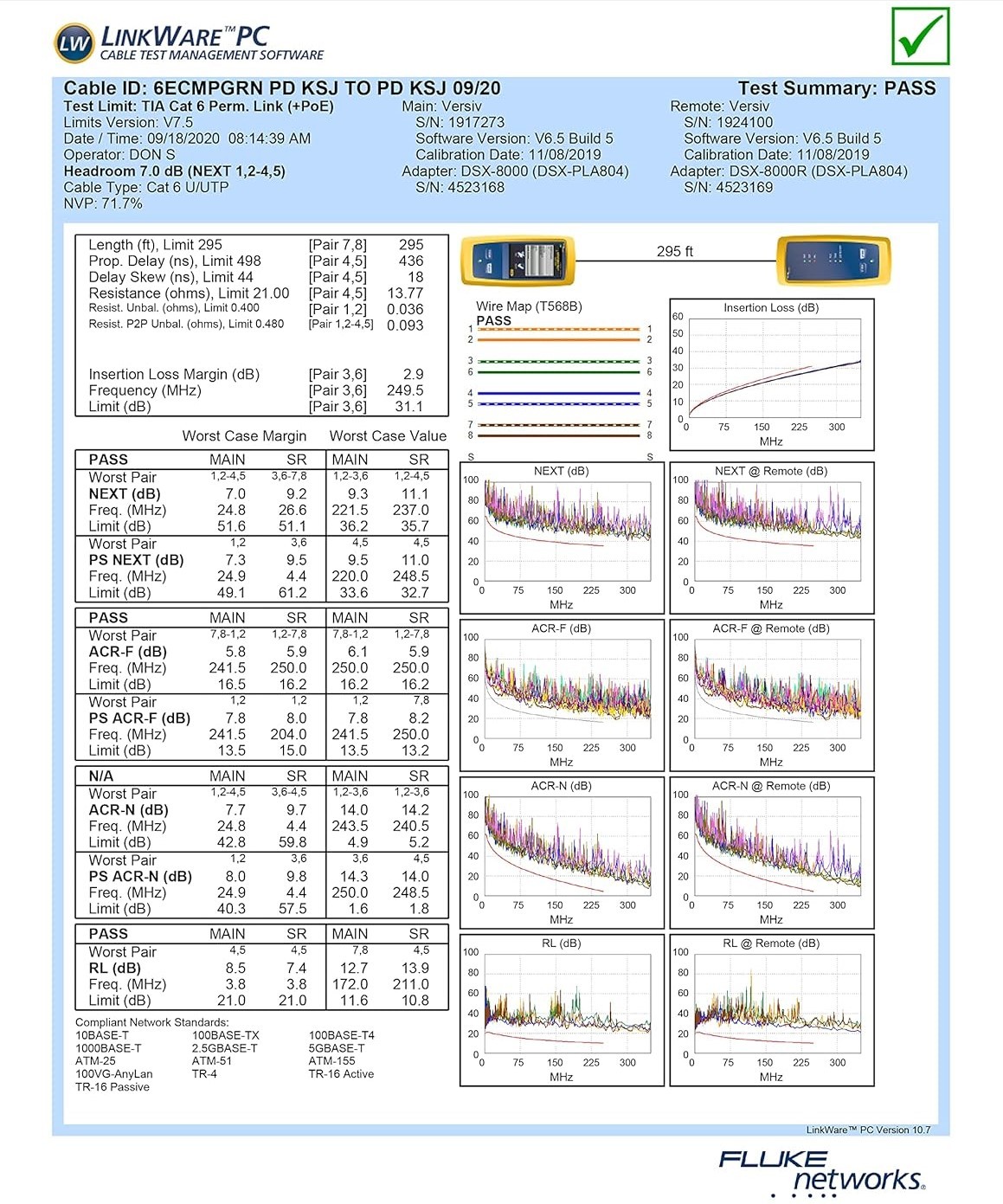

[ Pass fluke test]. Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS- compliant,.
Specification:
Model |
Cat6 UTP Cable CMR |
Conductor Material |
Bare Copper |
Conductor Size |

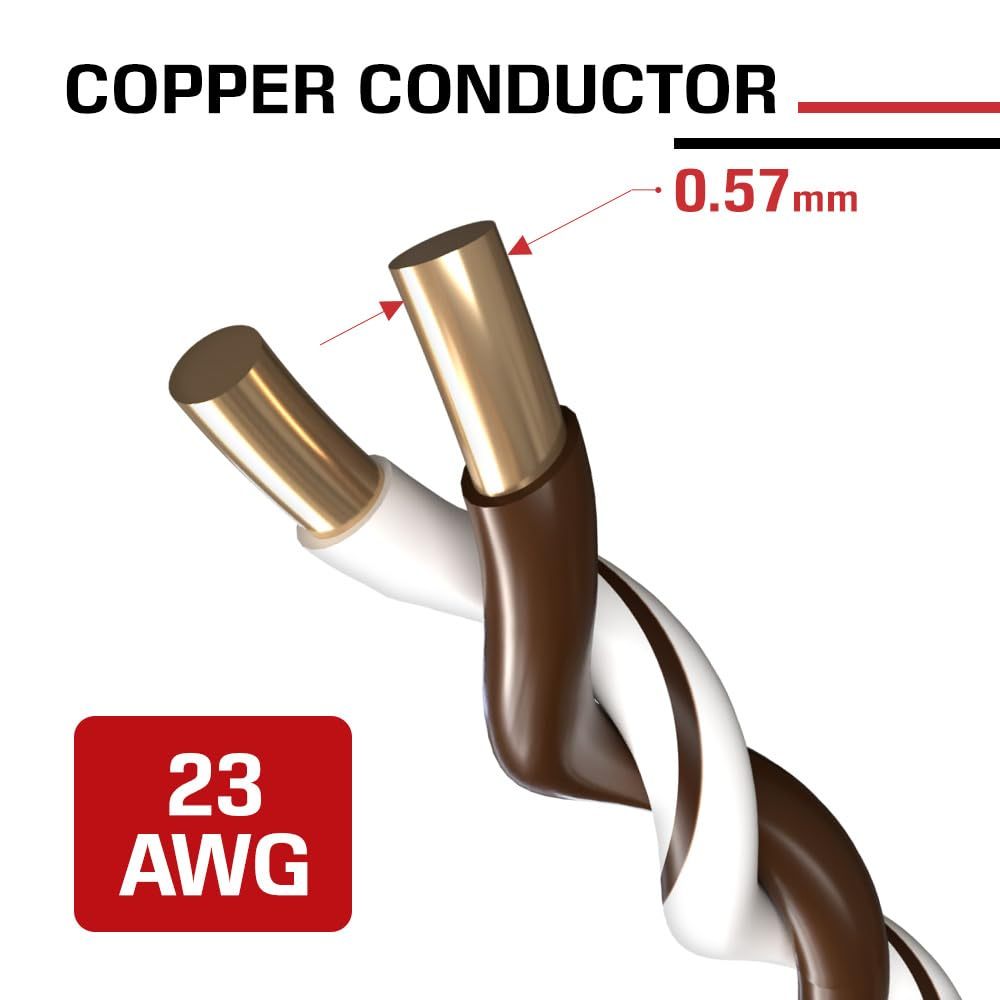

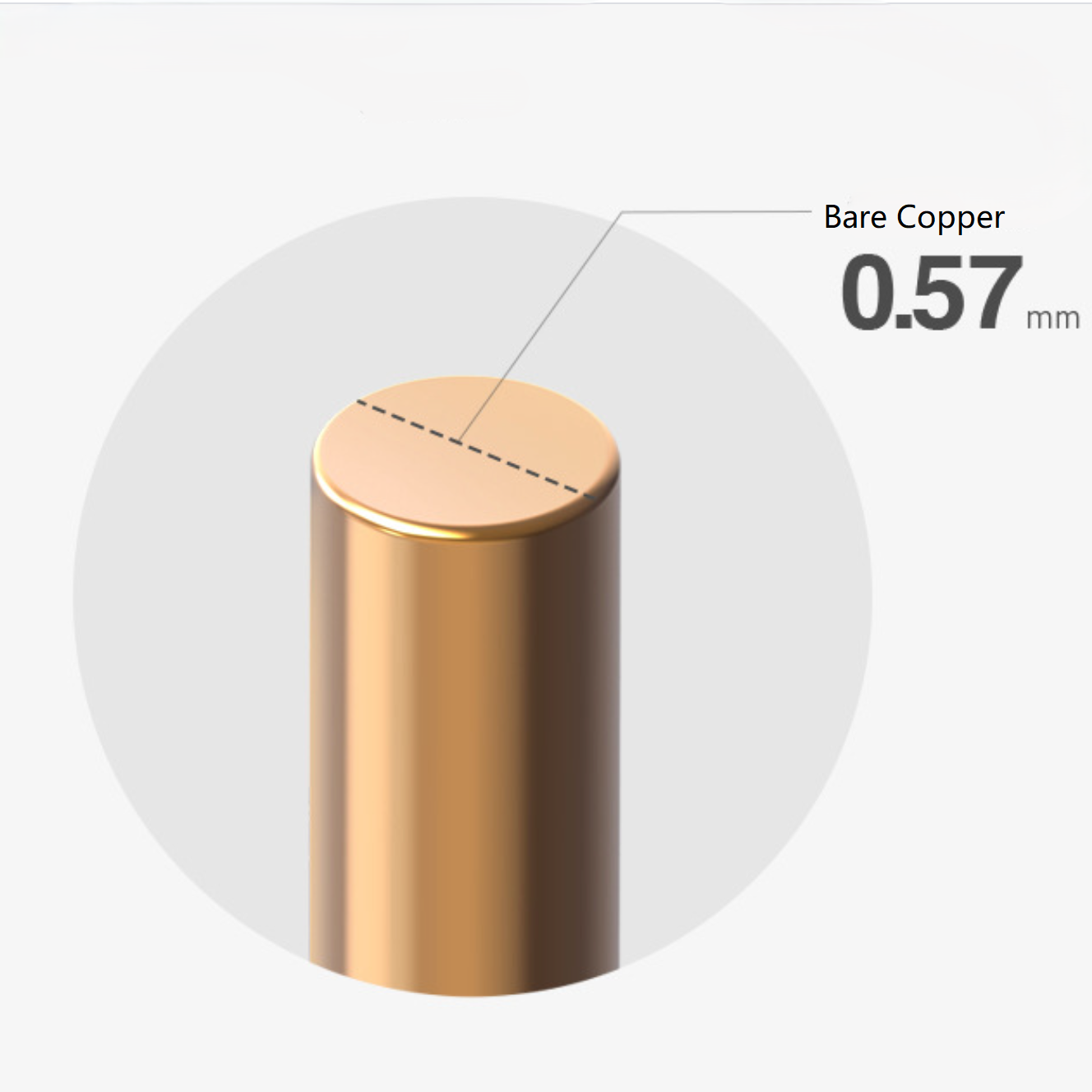

23AWG/(0.57±0.01)mm |
Number of Conductor |
4 Pairs / 8 Cores |
Shield |
UTP |
Indoor/Outdoor |
Indoor |
Insulation Material |
HDPE |
Insulation OD |
1.02mm |
Jacket Material |
75°PVC |
Outer Jacket OD |
6.2mm |
DC Resistance Imbalance |
2.50% |
Insulation Resistance |
10000 MOhm.km |
Transmission Velocity |
65% |
Operating Temperation |
-40 °C - +75 °C |
PVC Jacket Color |
As client's request. |
Marking On Jacket |
On your request (Print your brand) |
Length |
305m |
Frequency |
250MHZ |
Flame Rating |
CMR |
Test |
Pass Fluke test |
How to choose Conductor material for Cat6 Cable
Model |
Conductor material |
Conductor size |
OD |
Length |
CAT6-003-CCA |
CCA |
23AWG (1/0.57 CCA) |
OD6.2mm |
305M |
CAT6-003-BC |
Bare copper |
23AWG (1/0.57 BC) |
OD6.2mm |
305M |
Remark : Bare copper produces a stronger signal along with better conductivity and flexibility when CCA .CCA is more economic |
How to choose your right Cat6 Cable
Model Name |
Indoor /Outdoor |
unshieded/Shieded |
Jacket ( Flame rating ) |
OD |
Remark |
CAT6-001-CCA |
Indoor |
UTP |
Normal PVC |
6.2mm |
economic use |
CAT6-002-BC |
Indoor |
UTP |
Normal PVC |
6.2mm |
Middle end |
CAT6-003 |
Indoor |
UTP |
CMR |
6.2mm |
CAT6-004 |
Indoor |
FTP |
Normal PVC |
6.8mm |
Quality use |
CAT6-005 |
indoor |
FTP |
LSZH PVC |
6.8mm |
CAT6-007 |
indoor |
SFTP |
LSZH PVC |
8.0mm |
CAT6-008 |
Outdoor |
UTP |
Waterproof PVC |
6.5mm |
economic use |
Remark: 1. SFTP better than FTP ,FTP Better than UTP
2. LSZH and CMR PVC better than Normal PVC |
